40PV-SP Vertical Slurry Pump Casing SP4092A05

(0 Reviews)

TB-SP4092A05

Product Brands: Tobee

pump casing SP4092 is used for 40PV-SP Vertical Sump Slurry Pump.

price:

$369.00

Materials:

A05

Part Code:

SPR4092A05

Pump model:

40PV-SP

Quantity:

- + (60 available)
Add to Favorite Items (0)

Sales: 0+

Slurry pump casing SP4092 is used for 40PV SP Vertical Slurry Pump.

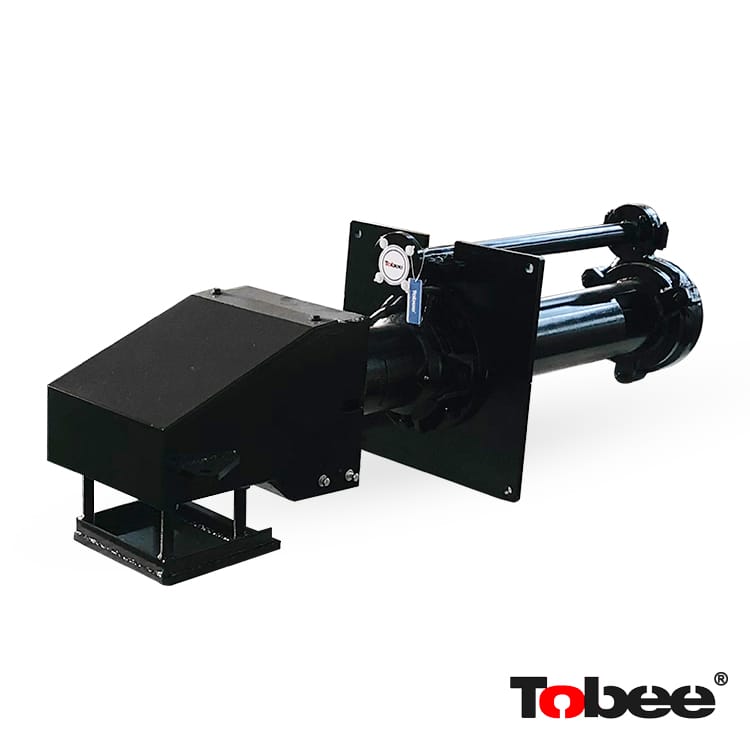

40PV SP Vertical Slurry Pump is designed to handle diverse uses including all rugged mining and industrial applications, always ensuring reliable performance and excellent wear endurance. 40PV SP vertical sump pumps are available in various standard lengths to suit common sump depths, offers a wide range of configurations allowing the pump to be tailored to a specific application. Wetted components are available in a wide range of alloys and elastomers. They are ideally suited for handling abrasive and corrosive liquids and slurries while submerged in sumps or pits.

40PV SP Vertical Slurry Pump Parts List:

No.

Pump Model

Part Name

Basic Part No.

Part Code

Material

1

40PV-SP

Bearing Housing

004

PV004

Ductile

2

40PV-SP

Bearing Sleeve

008

PV008

-

3

40PV-SP

Bearing

009

P009

SKF/Timken (Standard)

4

40PV-SP

Bearing

009D

P009D-1

SKF/Timken (Standard)

5

40PV-SP

Mounting Plate

019

PV4019

Steel

6

40PV-SP

End Cover

024

PV024

Ductile

7

40PV-SP

Low End Cover

024L

PV024L

Steel

8

40PV-SP

Key

-

PV070

Steel

9

40PV-SP

Washer

-

45

Steel

10

40PV-SP

Shim Set

025

PV025

-

11

40PV-SP

Nipple

-

M10X1

Steel

12

40PV-SP

Name Plate

-

-

-

13

40PV-SP

Rivet

-

-

Steel

14

40PV-SP

Back Liner

041

SP4041

Chrome alloy

15

40PV-SP

Suction Joint

060

SP4060

-

16

40PV-SP

Lock Nut

061

PV061

Steel

17

40PV-SP

Labyrinth

062

PV062

Steel

18

40PV-SP

Nipple 45

-

M10X1

Steel

19

40PV-SP

O Ring

064

PV064

Ductile

20

40PV-SP

Shaft

073

PV4073

Steel

21

40PV-SP

Shaft Sleeve Ejector

077

PV077

-

22

40PV-SP

Bearing Seal

089

PV089

-

23

40PV-SP

Casing

092

SP4092

Chrome alloy

24

40PV-SP

Column

102

PV4102

-

25

40PV-SP

Piston Ring

108

P108

Steel

26

40PV-SP

End Cover Set Screw

-

N027M

Steel

27

40PV-SP

Strainer

116

SP4116

-

28

40PV-SP

Lower Strainer

116L

SP4116L

D21

29

40PV-SP

Casing Seal

124

SP4124

-

30

40PV-SP

Discharge Pipe

154

PV4154

-

31

40PV-SP

Flinger

184

PV184

-

32

40PV-SP

Discharge Pipe Gasket

204

SP4204

-

33

40PV-SP

Impeller

206

SP4206

Chrome alloy

34

40PV-SP

O Ring

217

PV217

Steel

35

40PV-SP

Spacer Set

290

PV290

-

36

40PV-SP

Suction Pipe

322

SP4322

-
