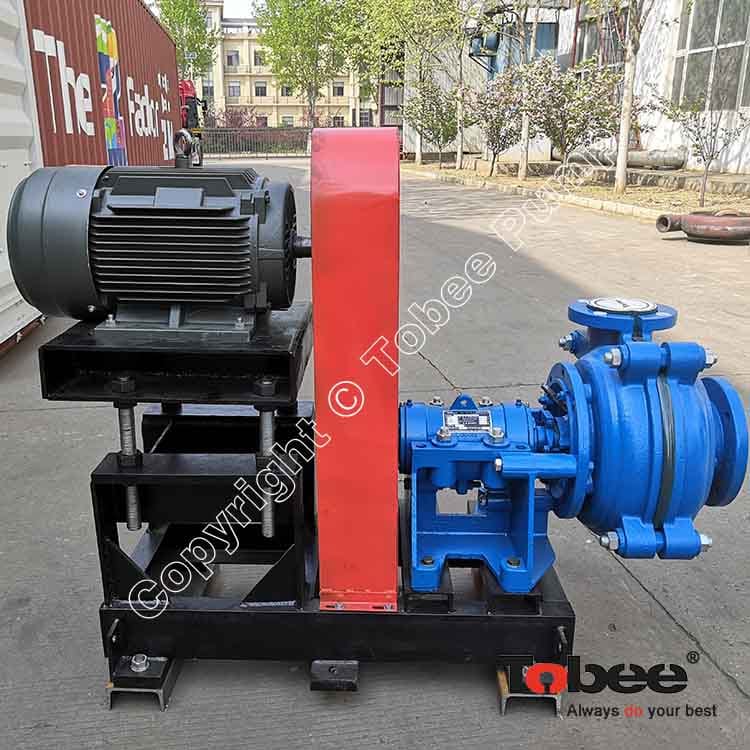

4/3 D AH Rubber Lined Slurry Pump Specification:
Size: 4" x 3"
Capacity: 79.2-180m3/h
Head: 5-34.5m
Speed: 800-1800rpm
NPSHr: 3-5m
Eff.: 59%
Power: Max.60kw
Handling solids: 28mm
Materials: R08, R26, R55, S02, S12, S21, S31, S42 etc
4/3 D AH Rubber Lined Slurry Pump Application:
4/3 D AH Rubber Lined Slurry Pumps are widely used for Mill discharge, Ni acid slurry, Coarse sand, Coarse tailings, Phosphate matrix, Minerals concentrate, Heavy media, Sugar beet, Dredging, Bottom/Fly ash, Lime grinding, Oil sands, Mineral sands, Fine tailings, Slag granulation, Phosphoric acid, Coal, Flotation, Process chemical, Phosphoric acid etc.
Tobee® THR » AHR Rubber Slurry Pumps Performance Parameters:
Tobee | Equivalent | Max.Power (kw) | Materials | Clear water performance | Impeller Vane No. | |||||
Liner | Impeller | Capacity Q (m3/h) | Head H (m) | Speed n (rpm) | Eff. η (%) | NPSH (m) | ||||
THR1.5/1B | 1.5/1B-AHR | 15 | RU | RU | 10.8-25.2 | 7-52 | 1400-3400 | 35 | 2-4 | 3 |
THR2/1.5B | 2/1.5B-AHR | 15 | RU | RU | 25.2-54 | 5.5-41 | 1000-2600 | 50 | 3.5-8 | 5 |
3/2C-AHR | 30 | RU | RU | 36-75.6 | 13-39 | 1300-2100 | 55 | 2-4 | 5 | |
THR4/3C | 4/3C-AHR | 30 | RU | RU | 79.2-180 | 5-34.5 | 800-1800 | 59 | 3-5 | 5 |
THR4/3D | 4/3D-AHR | 60 | RU | RU | 79.2-180 | 5-34.5 | 800-1800 | 59 | 3-5 | 5 |
THR6/4D | 6/4D-AHR | 60 | RU | RU | 144-324 | 12-45 | 800-1350 | 65 | 3-5 | 5 |
THR6/4E | 120 | RU | RU | 144-324 | 12-45 | 800-1350 | 65 | 3-5 | 5 | |
THR8/6E | 8/6E-AHR | 120 | RU | RU | 324-720 | 7-49 | 400-1000 | 65 | 5-10 | 5 |
THR8/6R | 8/6R-AHR | 300 | RU | RU | 324-720 | 7-49 | 400-1000 | 65 | 5-10 | 5 |
THR10/8ST | 10/8ST-AHR | 560 | RU | RU | 12-50 | 400-750 | 75 | 4-12 | 5 | |
TMR10/8E | 120 | RU | RU | 540-1188 | 10-42 | 500-900 | 79 | 5-9 | 5 | |
12/10ST-AHR | 560 | RU | RU | 720-1620 | 7-45 | 300-650 | 80 | 2.5-7.5 | 5 | |
THR14/12ST | 14/12ST-AHR | 560 | RU | RU | 1152-2520 | 13-44 | 300-500 | 79 | 3-8 | 5 |
THR16/14ST | 16/14ST-AHR | 560 | M | M | 1368-3060 | 11-63 | 250-550 | 79 | 4-10 | 5 |
THR18/16TU | 18/16TU-AHR | 1200 | M | M | 2160-5040 | 8-66 | 200-500 | 80 | 4.5-9 | 5 |
THR20/18TU | 20/18TU-AHR | 1200 | M | M | 2520-5400 | 13-57 | 200-400 | 85 | 5-10 | 5 |
