3/2D-HH Heavy Duty Slurry Pumps Wearing Spares

Product Brands: Tobee

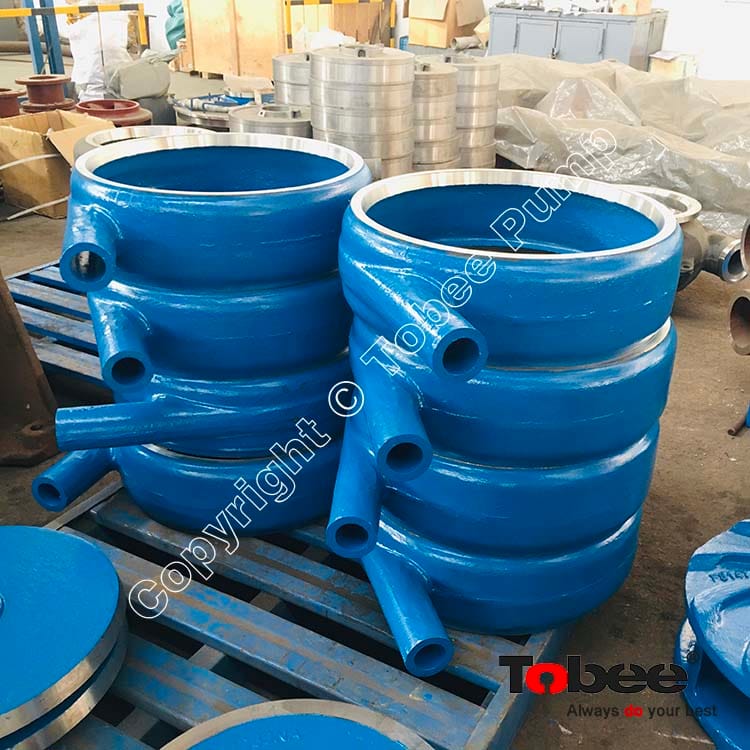

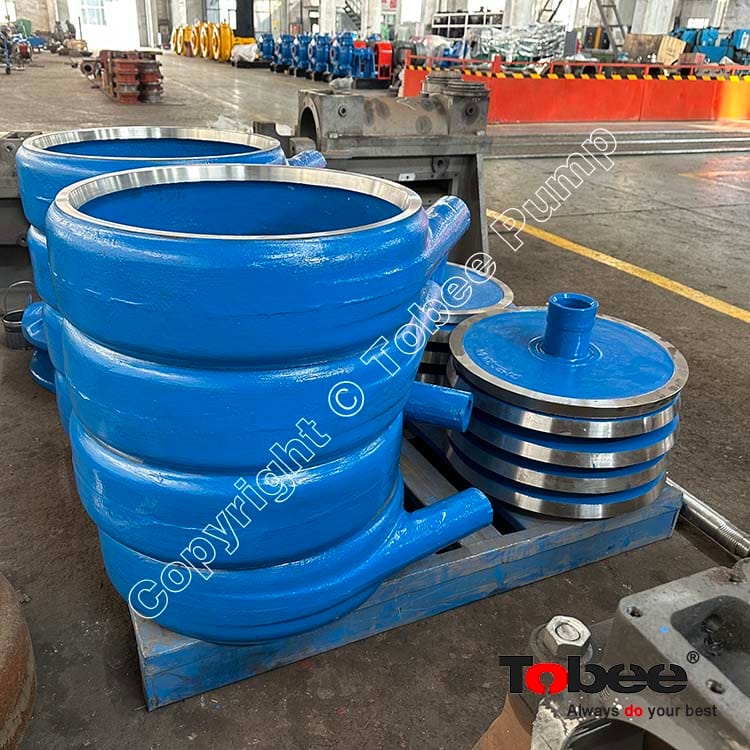

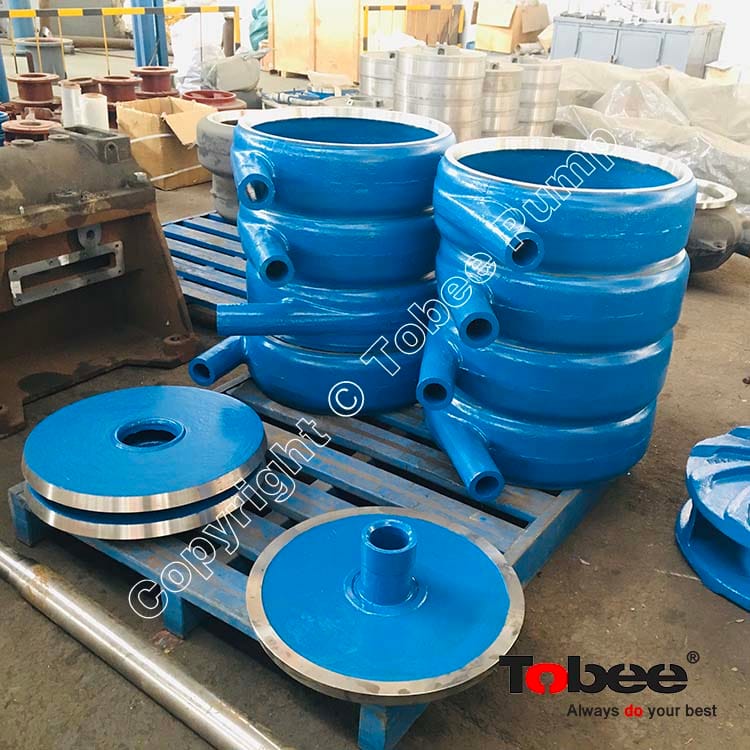

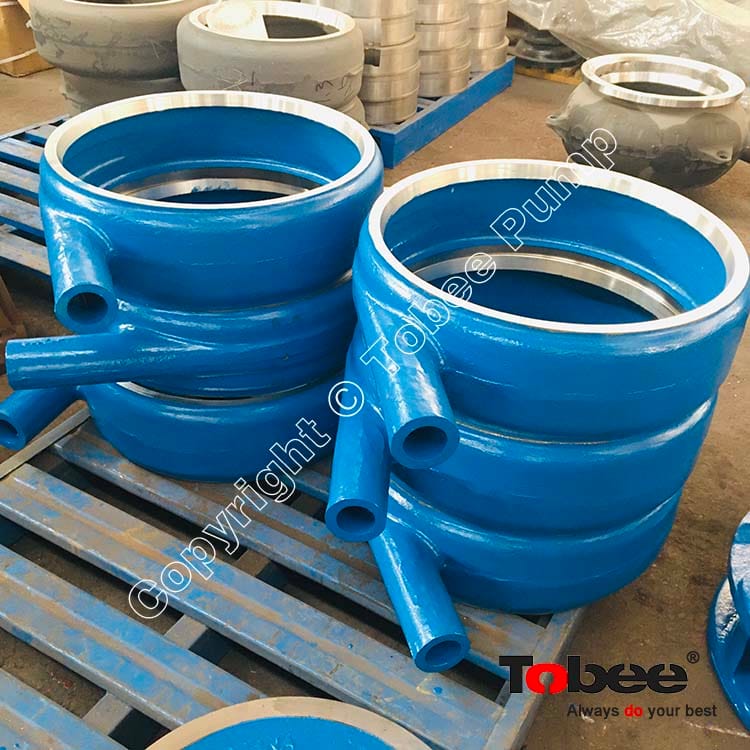

Tobee® 3/2D HH centrifugal slurry pumps spares and parts: DH2110A05 volute liner, DH2083A05 throatbush, DH2041MA05 frame plate liner insert, DH2147A05 impellers etc.

price:

$700.00 $720.00

Slurry Pump Model:

3/2D HH

Part Code:

DH2110A05

Certificates:

ISO CE SGS EAC

Quantity:

- + (400 available)

Add to Favorite Items (0)

Sales: 0+

Tobee^® 3/2D-HH High Head Slurry Pump is designed to produce high heads per stage at high pressures. Commonly used for long distance transport lines, the high head slurry pump lines can often satisfy application duties with a single pump where others require multiple pumps in series.

Tobee^® 3X2D HH High Head Slurry Pump Design Features:

• High head, high pressure centrifugal end suction slurry pump design.
• Ductile iron fully lined casing provides durability, strength and long service life.
• Hyper wear resistance materials for longtime worklife.
• Multi-stage high pressure operation allowed.
• Heavy duty construction with through-bolt design provides ease of maintenance and results in less down time
• Large diameter, slow turning, high efficiency impellers result in maximum wear life and lower operating costs
• Large, open internal passages maximize wear life and lower operating costs
• Full flush gland, low flow, and dry running centrifugal seals reduce flush water usage minimizing pump operating costs.

Tobee^® 3/2D-HH High Head Slurry Pumps Performance Parameters:

Model	Max. Power (kw)	Clear Water Performance					Impeller
Model	Max. Power (kw)	Capacity Q (m3/h)	Head H (m)	Speed n (rpm)	Eff. η (%)	NPSH (m)	Vane No.	Impeller Dia.
1.5/1C HH	30	16.2-34.2	25-92	1400-2200	20	2--5.5	5	330
3/2D HH	60	68.4-136.8	25-87	850-1400	47	3-7.5	5	457
4/3E HH	120	126-252	12-97	600-1400	50	2-5	5	508
6/4F HH	560	324-720	30-118	600-1000	64	3-8	5	711
8/6S HH	560	468-1008	20-94	500-1000	65	4-12	5	711

Tobee^® 3/2D HH High Head Slurry Pump On-site Applications:

• Mining	• Mineral processing	• Coal prep	• Cyclone feeds
• Tunnel	• Chemical slurries	• Tailings	• Mill grinding
• Ash handing	• Paper and Pulp	• Waste sludge	• Coarse sand
• Lime mud	• Phosphoric acid	• Dredging	• Construction
• Alumina Industry	• Power Plant	• Potash Fertilizer Plant	• Other industries

Label: 3/2D HH Warman Pumps Spares Warman 3x2D HH Slurry Pumps 3/2 HH Mining Pumps Parts 3X2 HH Gold Mining Pumps Parts HH Centrifugal Slurry Pumps Spares
