Home > SLURRY PUMP PARTS > 300FF-L Slurry Pump Stuffing Box RSL30078-D21

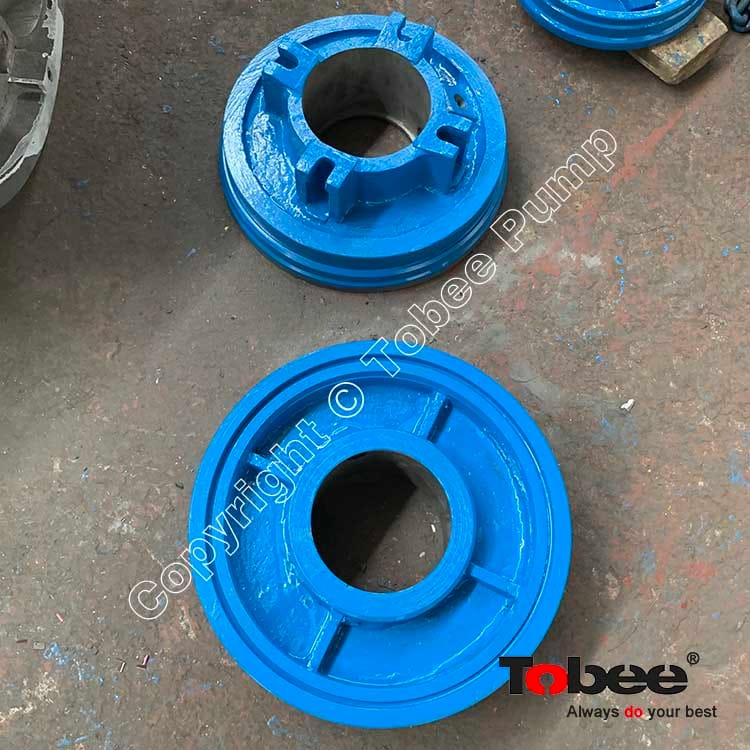

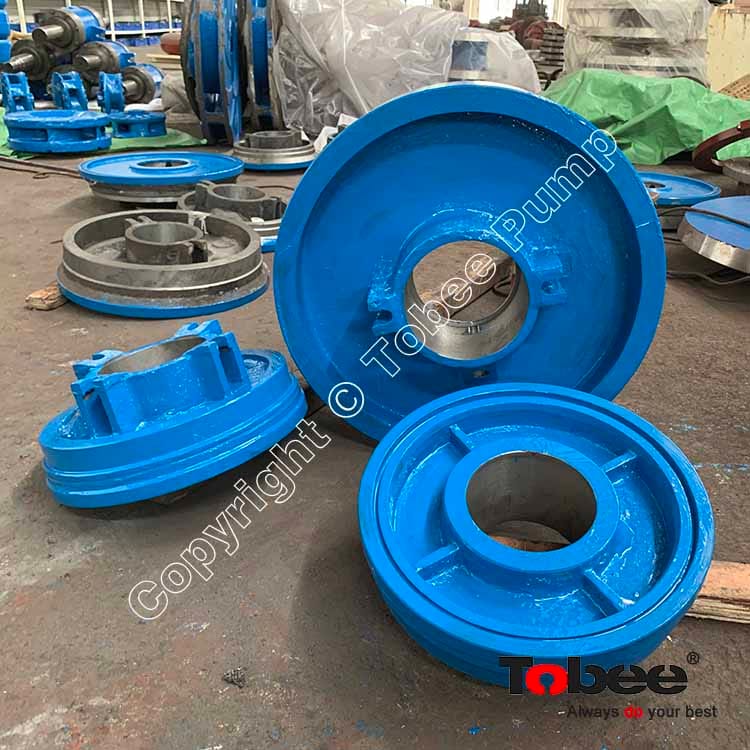

300FF-L Slurry Pump Stuffing Box RSL30078-D21

(0 Reviews)

TB--RSL30078D21

Product Brands: Tobee

Stuffing Box RSL30078D21 for 300FF-L Slurry Pump

price:

$589.00

Materials:

D21

Parts Code:

RSL30078D21

Pump model:

300FF-L

Quantity:

- + (80 available)
Add to Favorite Items (0)

Sales: 0+

RSL30078D21 Stuffing Box is one of shaft seal parts in 300FF-L Centrifugal Slurry Pump, Slurry Pump Stuffing Box is one of shaft seal parts in gland packing seal pumps where the packing is housed in. The packing area of stuffing box is longer than expeller ring, so it can contain more packing.

300FF-L Slurry Pump Wetted Parts

300FF-L Slurry Pump Impellers – higher efficiency rates (up to 90+ %) – pump out vanes to reduce recirculation within pump, and aid in preventing seal contamination; Impeller clearance is adjustable to maintain efficiency over the life of the part.
300FF-L Slurry Pump Liners – Alloy or thick elastomer liners provide superior erosion and corrosion resistance.

300FF-L Slurry Pump Seals

300FF-L Slurry Pump Expeller (Centrifugal Seal) – no external sealing water required where applicable
300FF-L Slurry Pump Stuffing Box – flushed gland sealing with braided packing and a lantern ring

300FF-L Slurry Pump Bearing Assembly

300FF-L Slurry Pump Cartridge-style bearing housing allows for removal from pump and assembly in controlled environment.

300FF-L Slurry Pump Oversized shaft diameters and reduced overhang in the wet-end contribute to long life and reliability in the field

Slurry Pump Stuffing Boxes List:

Standard Part code

Pump model

Materials

B078

1.5/1 B AH, 2/1.5 B AH

D21, A05, G01, C23

C078

3/2 C AH

D21, A05, G01, C23

CAM078

4/3 C AH

D21, A05, G01, C23

CH078

1.5/1 C HH

D21, A05, G01, C23

D078

4/3 D AH

D21, A05, G01, C23

DAM078

6/4 D AH

D21, A05, G01, C23

DSC078

100 D L 6/4 D SC

D21, A05, G01, C23

DH078

3/2 D HH

D21, A05, G01, C23

E078

6/4 E AH

D21, A05, G01, C23

EAM078

8/6 E AH, 10/8 E M

D21, A05, G01, C23

ESC6078

150 E L, 8/6 E SC

D21, A05, G01, C23

EP078

6/4 E AHPP

D21, A05, G01, C23

F078

8/6 F AH

D21, A05, G01, C23

FAM078

10/8 F AH

D21, A05, G01, C23

FH078

6/4 F HH

D21, A05, G01, C23

F8078

12/10 F M

21, A05, G01, C23

G078

10/8 ST AH, 12/10 ST AH, 14/12 ST AH

D21, A05, G01, C23

G8078

12/10 G AH

D21, A05, G01, C23

G10078

14/12 G AH

D21, A05, G01, C23

TU18078

16/14 TU AH, 550 TU L

D21, A05, G01, C23

H078

16/14 H AH, 20/18 H AH

D21, A05, G01, C23

S30078

300 S L

D21, A05, G01, C23

STL45078

400 ST L, 450 ST L

D21, A05, G01, C23
