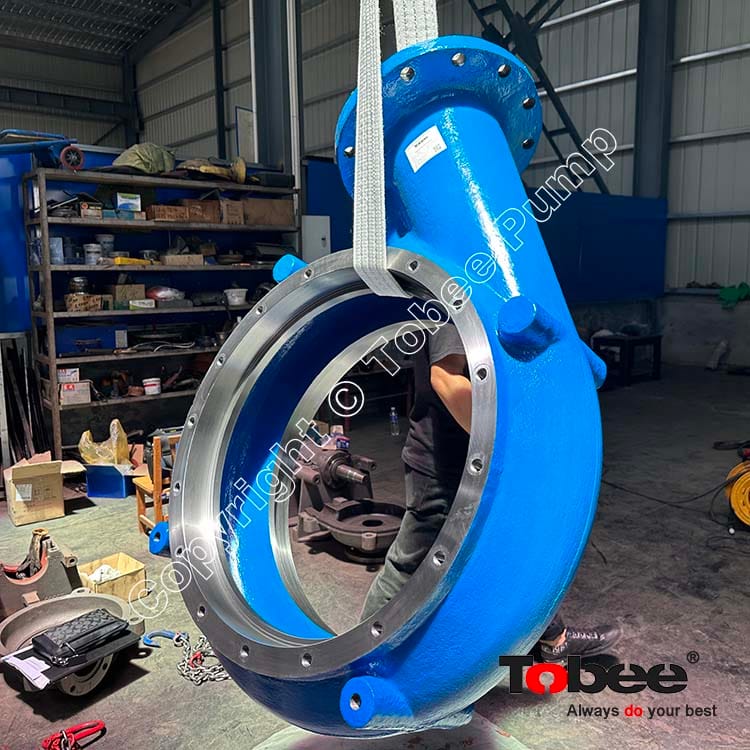

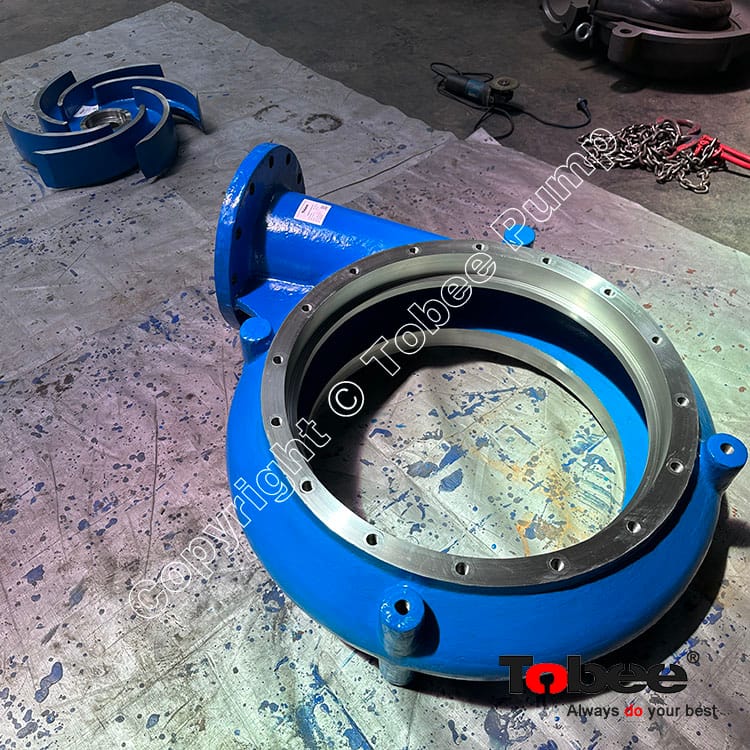

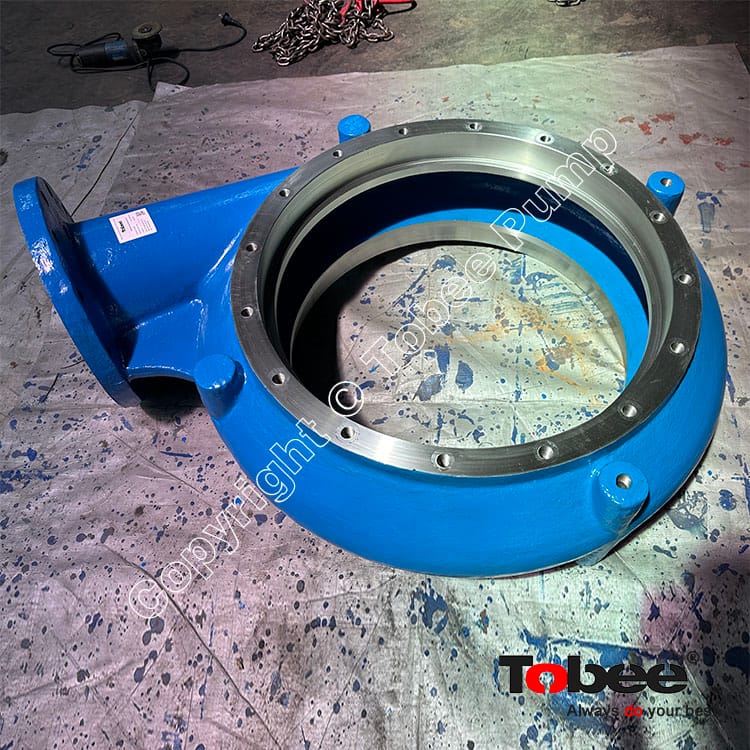

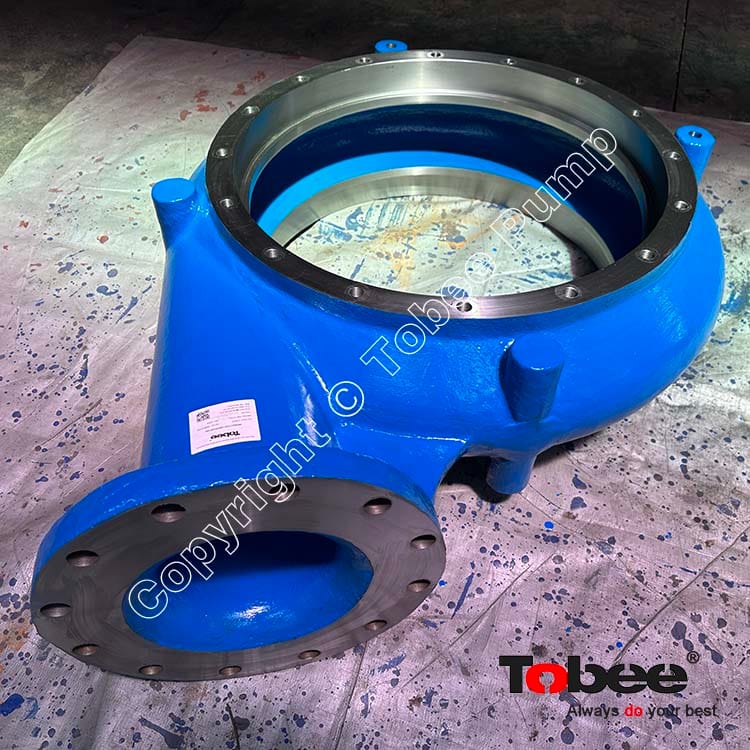

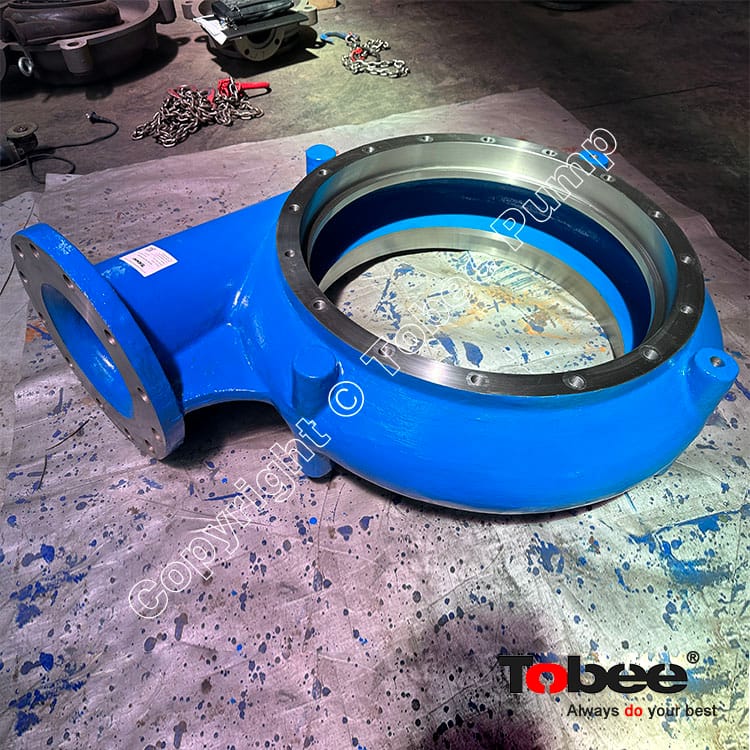

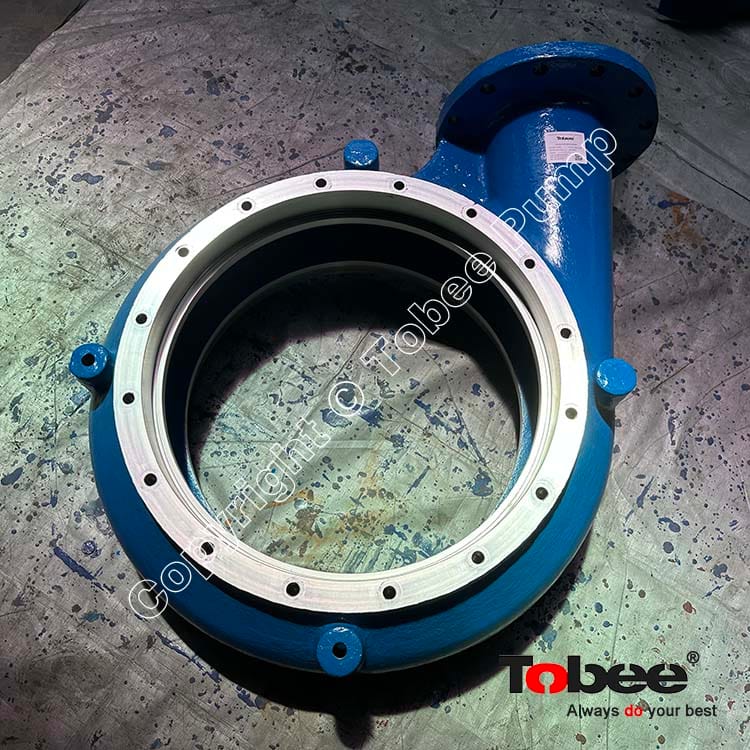

Sandman™ 25008-01-30A (662001001) Pump Casing for Mission Magnum XP 12x13x23 Frac Pump .
Mission Magnum XP pumps 12x10x23 high chrome wear-resistant fracturing sand pump is a single-stage and single-suction centrifugal pump. The XP series of sand pumps are mostly used on petroleum fracturing vehicles and are suitable for high-power working conditions in harsh operating environments. The design of high-displacement double-channel heavy-duty wear-resistant grouting pump is especially suitable for transporting large-flow and highly corrosive grout.
12x10x23 XP Pump Design Features:
√ Full-open wide impeller.
√ Long life no adjustment mechanical seal available for near zero leakage.
√ Thick, concentric casing with replaceable casing wear pad.
√ Hard iron and high chrome alloy material optional.
√ Large power to ensure large flow rates and head pressure up to 500ft.
√ Small footprint design is versatile for mobile and stationary application.
√ Working for fracking industrial standard and blending application.
√ Each casing is approved pressure test prior to delivery.
√ Heat treatment was done to improve the hardness and wear-resistance to ensure a longer working life.
√ Shaft sleeves are made by 416SS and ceramic coating to protect shaft from abrasive fluids for extra life.
√ Mechanical seals can be Tungsten-Tungsten, Tungsten-Silicone, or Silicone-Carbide, all with highly polish sealing face and piton bellow and stainless steel springs.
Mission Magnum XP Centrifugal Pumps Applications:
• Sand Slurry
• Supply boat mud transfer
• Slag
• Fly ash
• Bottom ash
• Dredge tailings
• Food processing
• Blending
• Paper pulp processing
• Waste slurries
• Sewage
• Fluid supercharging
• Spent liquor
• Nickel shot
• Copper, bauxite, and quary slurries
• Lead and zinc ore and tailings
Mission XP Blender Pump Parts List:
|
Mission Type Magnum XP Parts List |
||||||||||
|
Item # |
Description |
Qty. |
Base Part Number |
Processing Number |
|
Item # |
Description |
Qty. |
Base Part Number |
Processing Number |
|
1 |
1 |
24022-01-30A |
651120206 |
|
25 |
Bearing, Outboard (14X12 ) |
1 |
20616-2 |
658413307 |
|
|
|
Casing, 12x10x23 |
|
25008-01-30A |
662001001 |
|
|
Bearing, Outboard (12X10 & 8X6) |
2 |
|
661009001 |
|
|
Casing, 8x6x18 |
|
25289-02-30A |
662002089 |
|
26 |
Seal, Bearing Cover |
1 |
7496-267 |
658408802 |
|
2 |
Nut, Casing |
32 |
3932-61 |
648402014 |
|
27 |
Lock Washer |
1 |
Jun-24 |
658407002 |
|
3 |
Stud, Casing (14X12 & 12X10) |
32 |
3862-86 |
658403308 |
|
28 |
Lock Nut, Bearing |
1 |
Jun-23 |
658406509 |
|
|
Stud, Casing (8X6) |
16 |
3862-90 |
601208285 |
|
29 |
Oil Seal, Bearing Cover |
2 |
20619-04 |
658413638 |
|
|
Stud, Casing (8X6) |
16 |
3862-92 |
648401118 |
|
30 |
Drive Screws |
6 |
12530 |
601482417 |
|
4 |
Gasket, Casing (14x12x22) |
2 |
10399-55-01 |
658410501 |
|
31 |
Nameplate |
1 |
23017 |
601501505 |
|
|
Gasket, Casing (12x10x23) |
|
25012-01-01 |
661010001 |
|
32 |
Shaft |
1 |
24028-33 |
656420007 |
|
|
Gasket, Casing (8x6x18) |
|
25012-02-05 |
662010032 |
|
33 |
Key, Coupling |
1 |
4372-30-21 |
658405055 |
|
5 |
Cover, Front (14x12x22) |
1 |
24021-01-30 |
654310309 |
|
34 |
Cover, Bearing O.B. |
1 |
24033-01-01 |
654314004 |
|
|
Cover, Front (12x10x23) |
|
25009-01-30 |
662014003 |
|
35 |
Bolts, Bearing Cover |
2 |
3861-139 |
648401081 |
|
|
Cover, Front (8x6x18) |
|
25291-02-30 |
662014129 |
|
36 |
Washer, Bearing Cover |
2 |
3936-19-L8 |
648402030 |
|
6 |
Impeller, 14x12 Clockwise Rot. 22” |
1 |
24024-X0-HS |
662005003 |
|
37 |
Nuts, Bearing Housing |
2 |
3932-62 |
658404702 |
|
|
Impeller, 12x10 Clockwise Rot. 23” |
|
25010-Y0-30 |
662005002 |
|
38 |
Bolt, Bearing Housing |
4 |
3861-138 |
648401057 |
|
|
Impeller, 8x6 Clockwise Rot. 18” |
|
25292-T0-30 |
662005018 |
|
39 |
Washer, Flat |
2 |
3936-19-L8 |
648402030 |
|
7 |
Seal, Impeller Nose |
1 |
7496-158 |
658408109 |
|
40 |
Bolt, Packing Gland |
2 |
3861-165 |
601408289 |
|
8 |
Key, Impeller |
1 |
4372-29-21 |
658405006 |
|
41 |
Gland, Packing Half |
2 |
24034-01-13 |
654315100 |
|
9 |
Nose, Impeller ( Hex Design) |
1 |
24025-04-25L |
652309601 |
|
42 |
Packing Set |
1 |
8264-344-K |
658409503 |
|
|
Nose, Impeller (Two Flat Design) |
|
24025-01-25L |
652309600 |
|
43 |
Screw, Cap |
2 |
3909-04-87 |
658404207 |
|
|
Nose, Impeller (2 Flat Ion Nitride) |
|
24025-03-25L |
662014054 |
|
44 |
Plug, Grease |
1 |
Jan-05 |
601474695 |
|
10 |
Screw, Set |
1 |
14430-19 |
658411400 |
|
45 |
Breather |
1 |
Jan-67 |
601473689 |
