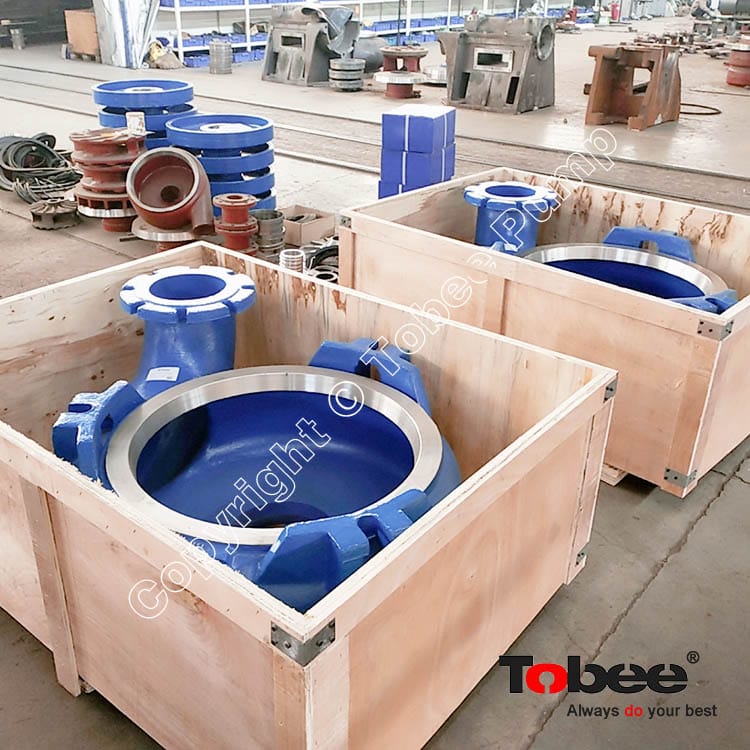

Tobee® Pump Casing SP15092A05 is used for 150 SV-SP Vertical Sump Pump.
Tobee® Vertical Slurry Pump called Spindle pump, sump pump, column pump, cantilever pump, submerged pump as well.
Metal Model: 40PV-SP, 65QV-SP, 100RV-SP,150SV-SP, 200SV-SP, 250TV-SP, 300TV-SP
Wet End parts:
Pump Impeller SP40206A05, SP65206A05,SP10206A05, SP15206A05, SP20206A05, SP25206A05, SP30206A05
Pump Casing SP40092A05, SP65092A05, SP10092A05, SP15092A05, SP20092A05, SP25092A05, SP30092A05
Pump Back liner SP40041A05, SP65041A05, SP10041A05, SP15041A05, SP20041A05, SP25041A05, SP30041A05
150 SV-SP Vertical Sump Pump Spare Parts List:
|
No. |
Pump Model |
Part Name |
Basic Part No. |
Part Code |
Material |
|
1 |
150SV-SP |
Bearing Housing |
004 |
SV004-1 |
Ductile |
|
2 |
150SV-SP |
Bearing Sleeve |
008 |
SV008 |
- |
|
3 |
150SV-SP |
Bearing |
009 |
S009 |
SKF/Timken |
|
4 |
150SV-SP |
Bearing |
009D |
S009D-1 |
SKF/Timken |
|
5 |
150SV-SP |
Mounting Plate |
019 |
SV15019 |
Steel |
|
6 |
150SV-SP |
End Cover |
024 |
SV024 |
Ductile |
|
7 |
150SV-SP |
Low End Cover |
024L |
SV024L-1 |
Steel |
|
8 |
150SV-SP |
Key |
- |
SV070 |
Steel |
|
9 |
150SV-SP |
Washer |
- |
105 |
Steel |
|
10 |
150SV-SP |
Shim Set |
025 |
SV025 |
- |
|
11 |
150SV-SP |
Nipple |
- |
M10X1 |
Steel |
|
12 |
150SV-SP |
Name Plate |
- |
- |
- |
|
13 |
150SV-SP |
Rivet |
- |
- |
Steel |
|
14 |
150SV-SP |
Back Liner |
041 |
SP15041 |
Chrome alloy |
|
15 |
150SV-SP |
Suction Joint |
060 |
SP15060 |
- |
|
16 |
150SV-SP |
Lock Nut |
061 |
SV061 |
Steel |
|
17 |
150SV-SP |
Labyrinth |
062 |
SV062 |
Steel |
|
18 |
150SV-SP |
Nipple 45 |
- |
M10X1 |
Steel |
|
19 |
150SV-SP |
O Ring |
064 |
SV064 |
Ductile |
|
20 |
150SV-SP |
Shaft |
073 |
SV15073 |
Steel |
|
21 |
150SV-SP |
Shaft Sleeve Ejector |
077 |
- |
|
|
22 |
150SV-SP |
Bearing Seal |
089 |
SV089 |
- |
|
23 |
150SV-SP |
Casing |
092 |
SP15092 |
Chrome alloy |
|
24 |
150SV-SP |
Column |
102 |
SV15102 |
- |
|
25 |
150SV-SP |
Piston Ring |
108 |
S108 |
Steel |
|
26 |
150SV-SP |
End Cover Set Screw |
- |
S027M-1 |
Steel |
|
27 |
150SV-SP |
Strainer |
116 |
SP15116-1 |
- |
|
28 |
150SV-SP |
Lower Strainer |
116L |
SP15116L |
D21 |
|
29 |
150SV-SP |
Casing Seal |
124 |
DH2125 |
- |
|
30 |
150SV-SP |
Discharge Pipe |
154 |
SV15154 |
- |
|
31 |
150SV-SP |
Flinger |
184 |
SV184-1 |
- |
|
32 |
150SV-SP |
Discharge Pipe Gasket |
204 |
SP15204 |
- |
|
33 |
150SV-SP |
Impeller |
206 |
SP15206 |
Chrome alloy |
|
34 |
150SV-SP |
O Ring |
217 |
SV217 |
Steel |
|
35 |
150SV-SP |
Spacer Set |
290 |
SV290 |
- |
|
36 |
150SV-SP |
Suction Pipe |
322 |
SP15322 |
- |
