Home > SLURRY PUMP PARTS > AH Slurry Pump Parts > 14/12 AH Slurry Pump > 14x12ST-AH Slurry Pump Parts Shaft Sleeve SH075C21

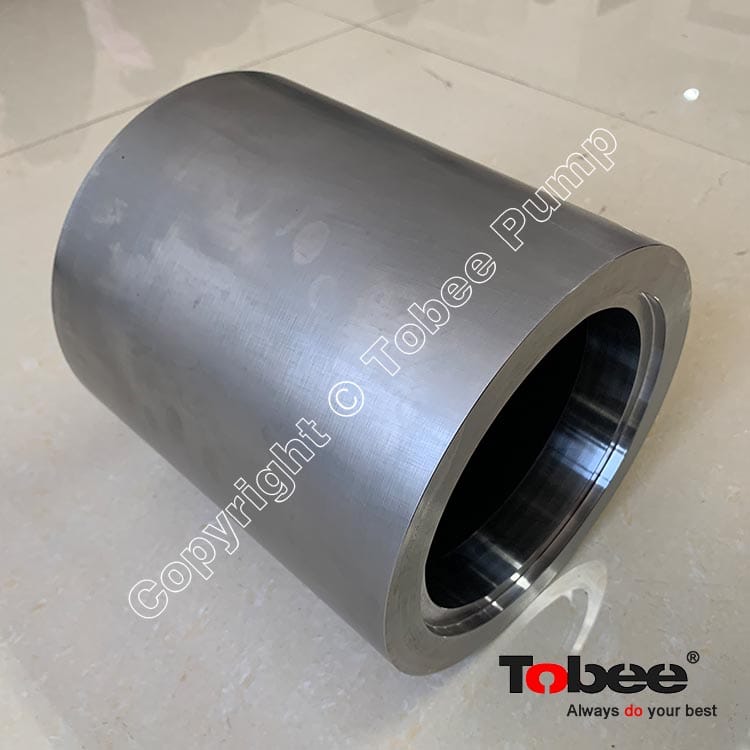

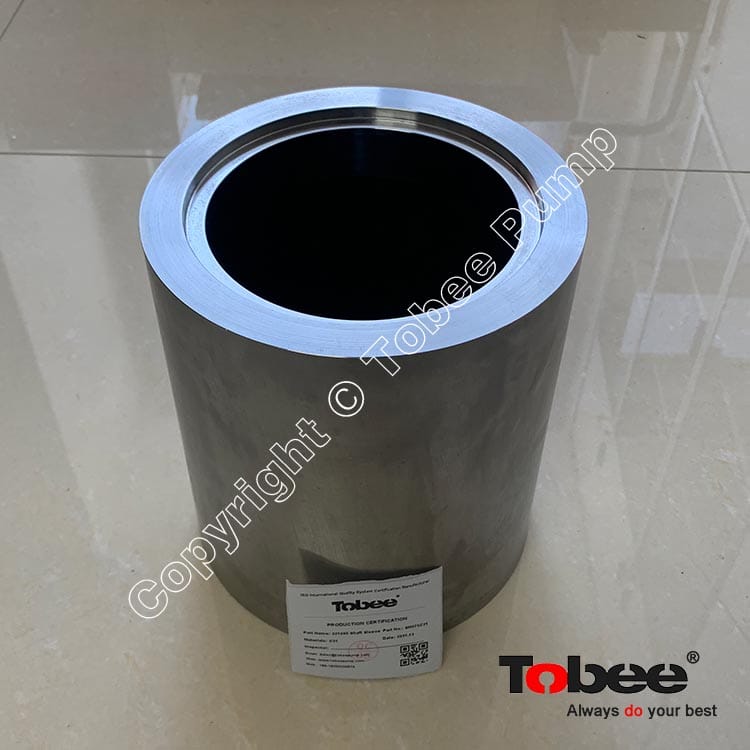

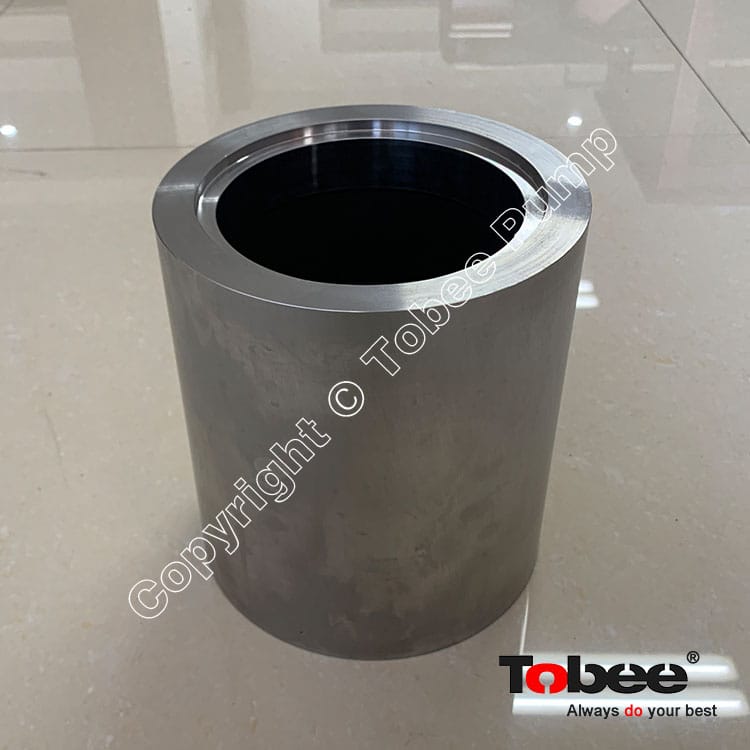

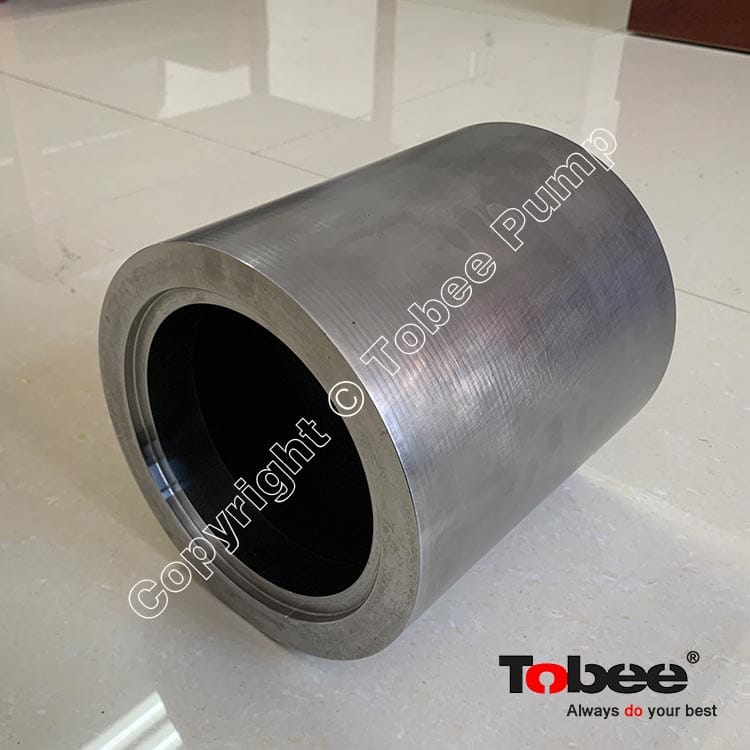

14x12ST-AH Slurry Pump Parts Shaft Sleeve SH075C21

(0 Reviews)

TB-SH075C21

Product Brands: Tobee

SH075C21 Shaft Sleeve is one of the best important wetted parts for 14x12ST-AH Slurry Pump.

price:

$677.00 $789.00

Part Code:

SH075C21

Quantity:

- + (145 available)
Add to Favorite Items (0)

Sales: 0+

SH075C21 Shaft Sleeve is one of the best important wetted parts for 14x12ST-AH Slurry Pump.



The Shaft Sleeve spare part code is 075 and 076. We have slurry pump shaft sleeve in material 4Cr13, Ceramic coated, tungsten carbide coated and stainless steel, to meet different applications. The slurry pump shaft sleeve protects the pump shaft from slurry abrasion and corrosion, enhance the pump life time.

Slurry Pump Shaft Sleeve is also a quick - wear part of slurry pumps. The design and material of shaft sleeve is significant to slurry pump service life, The slurry pump shaft sleeve protects pump shaft from abrasion and corrosion within seal arrangements, Tobee offers different materials of shaft sleeve for international brand slurry pumps.

A shaft sleeve acts as a shield for the shaft assembly in pumps and compressors. A shaft sleeve is a hollow metal tube, cylindrical in shape, which is mounted over a shaft and shaft assembly to protect it in a corrosive environment. Shaft sleeves are commonly found in single-stage pumps. The pump shaft usually offers protection from corrosion and erosion. The basic function of a shaft sleeve is to protect the shaft from packing wear at the stuffing box. Shaft Sleeves help protect the running surface of the shaft seal or the surfaces in contact from damage or abrasive wear. The hardness of the material used to construct the shaft must be sufficient; Otherwise, it may cause a shaft sleeve to fail. The thermal expansion coefficient must be considered when designing a shaft sleeve. In ideal conditions, the shaft's coefficient of thermal expansion should be equal to that of the shaft sleeve.



Centrifugal Slurry Pump Shaft Sleeve Codes:

Shaft Sleeve Code

AH Slurry Pump

Shaft Sleeve Materials

B075

1.5/1B-AH, 2/1.5B-AH

SS420, SS304, SS316L, Ceramic

C075

3/2C-AH, 4/3C-AH

SS420, SS304, SS316L, Ceramic

D075

4/3D-AH, 6/4D-AH

SS420, SS304, SS316L, Ceramic

E075

6/4E-AH, 8/6E-AH, 8/6R-AH

SS420, SS304, SS316L, Ceramic

F075

8/6F-AH

SS420, SS304, SS316L, Ceramic

FAM075

10/8F-AH, 12/10F-AH, 14/12F-AH

SS420, SS304, SS316L, Ceramic

SH075

10/8ST-AH, 12/10ST-AH, 14/12ST-AH

SS420, SS304, SS316L, Ceramic

TH075

16/14TU-AH

SS420, SS304, SS316L, Ceramic

TH076

16/14TU-AH

SS420, SS304, SS316L, Ceramic

Shaft Sleeve Code

HH Slurry Pump

Shaft Sleeve Materials

CH075

1.5/1C-HH

SS420, SS304, SS316L, Ceramic

D075

3/2D-HH

SS420, SS304, SS316L, Ceramic

E075

4/3E-HH

SS420, SS304, SS316L, Ceramic

F075

6/4F-HH

SS420, SS304, SS316L, Ceramic

Shaft Sleeve Code

M Slurry Pump

Shaft Sleeve Materials

E075

10/8E-M

SS420, SS304, SS316L, Ceramic

F075

10/8F-M

SS420, SS304, SS316L, Ceramic

Shaft Sleeve Code

L Slurry Pump

Shaft Sleeve Materials

A075

20A-L

SS420, SS304, SS316L, Ceramic

BSC075

50B-L

SS420, SS304, SS316L, Ceramic

C075

75C-L

SS420, SS304, SS316L, Ceramic

D075

100D-L

SS420, SS304, SS316L, Ceramic

E075

150E-L

SS420, SS304, SS316L, Ceramic

S075

300S-L

SS420, SS304, SS316L, Ceramic

Shaft Sleeve Code

G(H) Gravel Pump

Shaft Sleeve Materials

D075

6/4D-G

SS420, SS304, SS316L, Ceramic

E075

8/6E-G

SS420, SS304, SS316L, Ceramic

F075

10/8F-G

SS420, SS304, SS316L, Ceramic

G075

12/10G-G, 14/12G-G, 12/10G-GH

SS420, SS304, SS316L, Ceramic

TH075

14/12TU-G,16/14TU-G,16/14TU-GH

SS420, SS304, SS316L, Ceramic

TH076

14/12TU-G, 16/14TU-G, 16/14TU-GH

SS420, SS304, SS316L, Ceramic



14/12 ST AH Slurry Pumps Applications:

The 14/12 ST AH Slurry Pumps are widely used to transport high-hardness, strong-corrosion and high-concentration liquids that contain suspended solid particles, such as finished ores, refuse ores, ashes, cinders, cements, mud, mineral stones, lime and etc. in the industries of metallurgy, mining, coal, power, building material and etc. The temperature of the pumped solid-liquid mixture should be ≤80℃, and the weight concentration should be ≤60.
