Tobee G/GH Gravel Slurry Pumps required for pump the large solids, like the coal, dredging and hard rock mining applications, which gravel pumps can consistently high head, high pressure, long distance, resulting in lower costs.

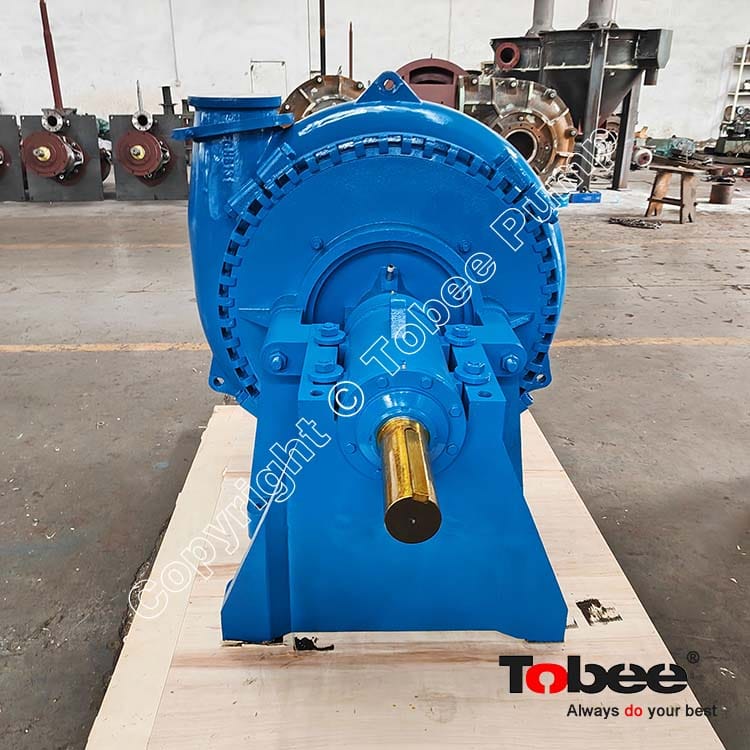

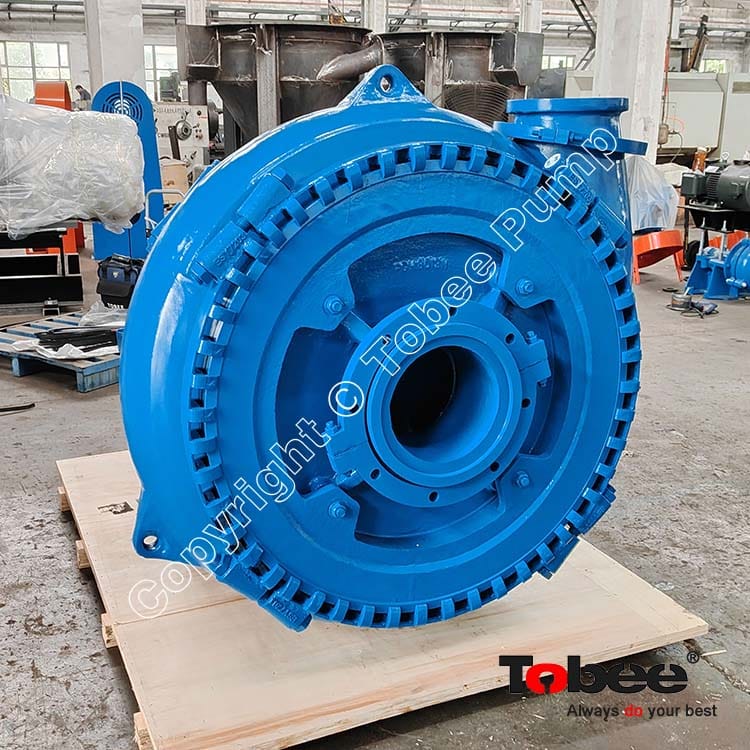

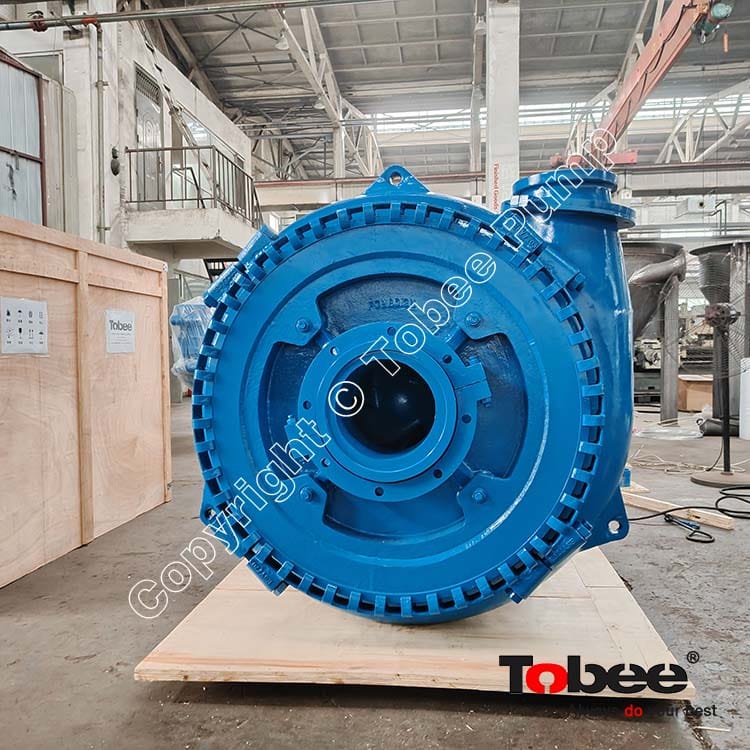

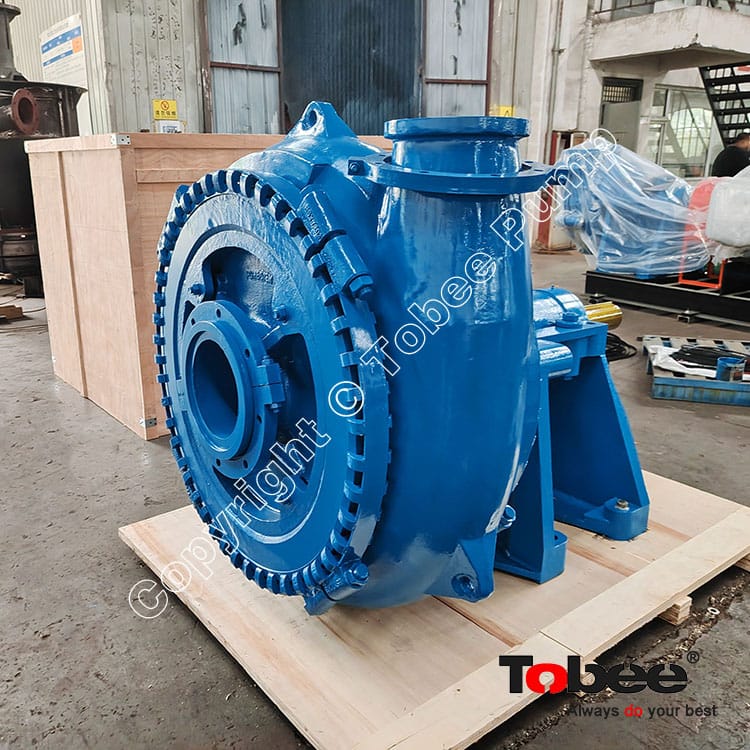

Tobee® GH series High Head Gravel Pump is designed for continuously handling the most difficult high abrasive, big particles slurries with extra high head. The wet parts are made of high-Chrome alloys to ensure long service life. GH gravel pumps has far better performance than common gravel pumps in dredging, sand mining, barge loading and mineral processing etc.
Gravel Dredge Pump Design Features:
√ GH high head gravel pump is cantilevered horizontal centrifugal pump designed for handling the most difficult higher abrasive slurries which contain too big solids to be pumps by a common slurry pump.
√ Construction of this pump is of single casing connected by means of clamp bands and wide wet-passage. The wet-parts are made of Ni-hard and high chromium abrasion-resistance alloys.
√ The discharge direction of pump can be oriented in any direction of 360°.
√ closed impeller with wide passage, good performance of NPSH and abrasion resistance.
√ All the wet parts are made of wear resistant high chrome alloy material. They are suitable for delivering slurry in mining, metal melting, dredging, barge loading.
Sand and Dredging Pumps Applications:
Dredging & Sand Mining
River/lake dredging, cutter suction dredgers, offshore pumping, port desilting, river sand excavation
Mining & Mineral Processing
Ore slurry transport, cyclone feed, long-distance pipeline duties, mineral processing plants
Power & Energy Sector
Power plant ash handling, coal washing, explosive sludge transport
Metallurgy & Smelting
Metal smelting slag transportation, non-ferrous metallurgy blast slag
Construction & Civil Engineering
Tunnel construction, building material transport, barge loadingSand/aggregate mixtures, construction gravels
Tobee® G/GH Sand Gravel Pumps Performance Parameters:
Model | Max. Power P (kw) | Capacity Q (m3/h) | Head H (m) | Speed n (r/min) | Eff. η (% ) | NPSH (m) | Impeller Dia. (mm) |
6/4D-G | 60 | 36-250 | 5-52 | 600-1400 | 58 | 2-5.5 | 378 |
6/4E-G | 120 | 36-250 | 5-52 | 600-1400 | 58 | 2-5.5 | 378 |
8/6E-G | 120 | 126-576 | 6-45 | 800-1400 | 60 | 3-4.5 | 391 |
10/8S-G | 560 | 216-936 | 8-52 | 500-1000 | 65 | 3-7.5 | 533 |
10/8S-GH | 560 | 180-1440 | 24-80 | 500-950 | 72 | 2.5-5 | 711 |

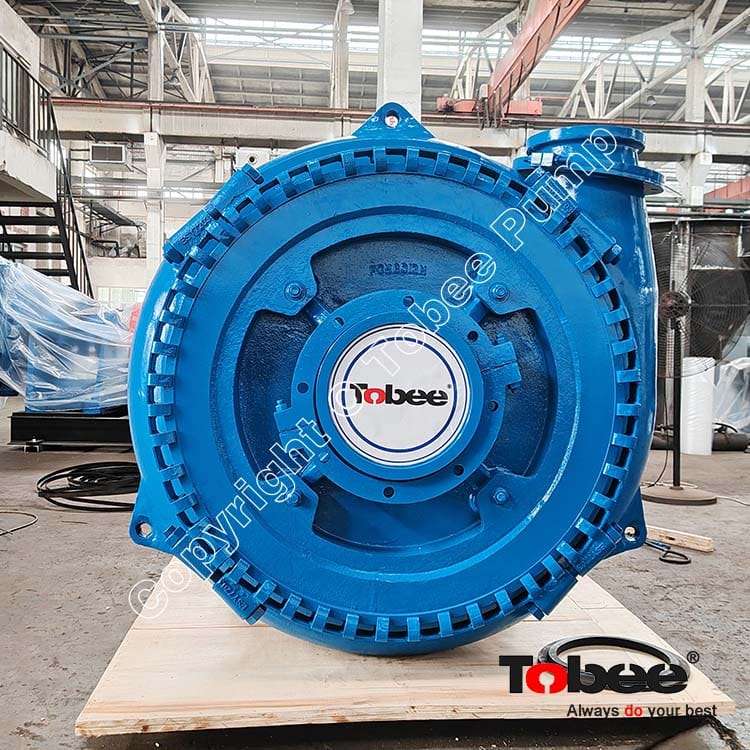

10/8F-G | 260 | 216-936 | 8-52 | 400-800 | 65 | 3-7.5 | 533 |
12/10F-G | 260 | 360-1440 | 10-60 | 350-700 | 65 | 1.5-4.5 | 667 |
12/10G-G | 600 | 360-1440 | 10-60 | 400-850 | 65 | 1.5-4.5 | 667 |
12/10G-GH | 600 | 288-2808 | 16-80 | 350-700 | 73 | 2-10 | 950 |
14/12G-G | 600 | 576-3024 | 8-70 | 300-700 | 68 | 2-8 | 864 |
14/12T-G | 1200 | 576-3024 | 8-70 | 300-700 | 68 | 2-8 | 864 |
16/14G-G | 600 | 720-3600 | 18-45 | 300-500 | 70 | 3-9 | 1016 |
16/14T-G | 1200 | 720-3600 | 18-45 | 300-500 | 70 | 3-9 | 1016 |
16/14TU-GH | 1200 | 324-3600 | 26-70 | 300-500 | 72 | 3-6 | 1270 |
18/16TU-G | 1200 | 720-4320 | 12-48 | 250-500 | 72 | 3-6 | 1067 |
