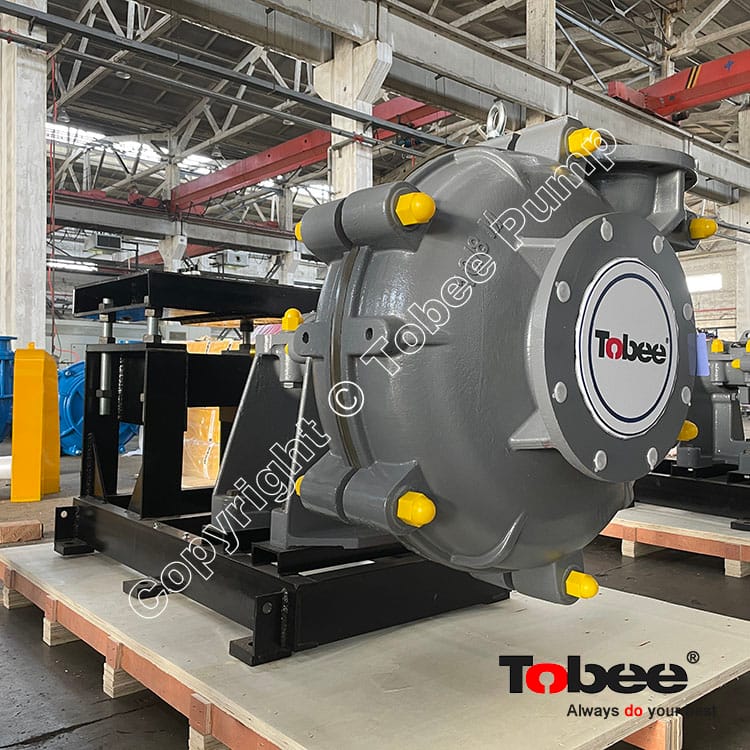

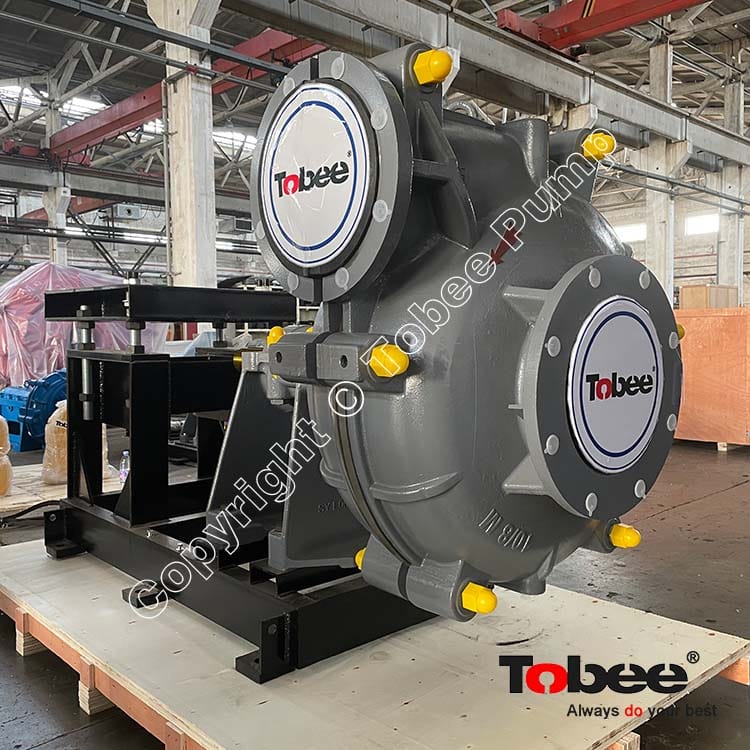

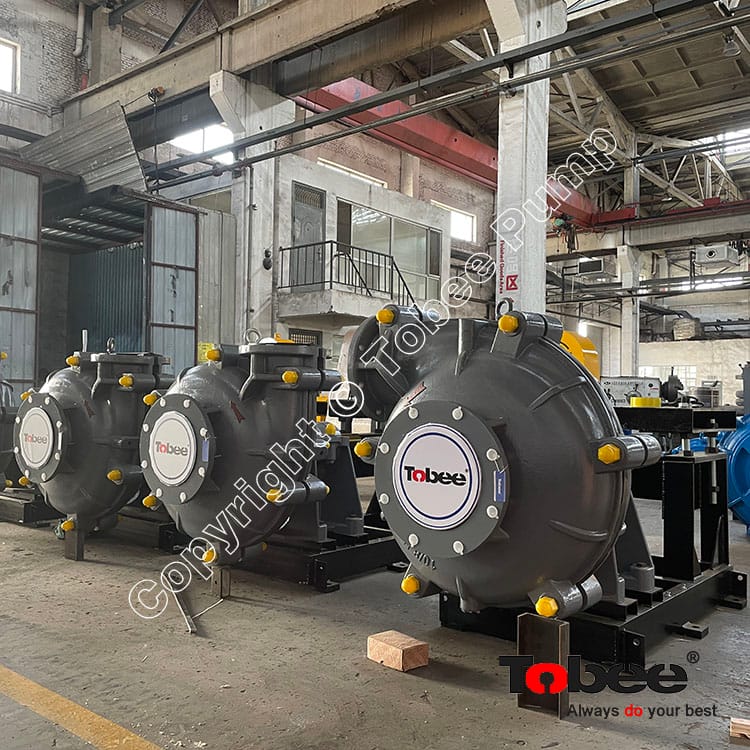

Tobee® 10/8E-M Medium-duty Slurry Pump with rubber liners primarily used in applications involving fine particle slurries without sharp, jagged edges.
Tobee® 10x8E-M Cyclone Feed Slurry Pump is cantilevered, horizontal and centrifugal with double casing structure, It mainly suitable for pumping medium concentration slurries, 10x8E-M slurry pump applies in coal washer processing, handling with the fine ore and tailings in metal mine, handing combined bottom and fly ash in a thermal power station etc.
Design Features:
√ Modular design for ease of maintenance.
√ Medium duty one piece frame base with lifting points for easy maintenance.
√ Standard ductile iron outer casings for higher working pressures and incorporating lifting points.
√ Standard or advanced bearing assembly improves reliability to extend bearing life reduce lubrication costs.
√ Shaft sealing for increased reliability, stuffing box, expeller, elevated seal or mechanical seal options available.
√ Standard or advanced impeller design options available.
√ Allows ease of fitting multiple liner materials, including hard metal, thick section rubber or polyurethane.
√ Single piece sleeve for stuffing box sealing, lowers stock holding and maintenance.
√ Multi-purpose design allows for reduced inventory requirements and interchangeability.
√ Belt guards allows for ease of maintenance and inspection of belt condition.
Tobee® 10/8 E-M Medium Duty Slurry Pumps Performance Parameters:
Model | Max. Power (kw) | Materials | Clear Water Performance | Impeller Vane No. | |||||
Liner | Impeller | Capacity Q ( m3/h) | Head H ( m) | Speed n (rpm) | Eff. η (%) | NPSH (m) | |||
10/8E-M | 300 | M | M | 666~1440 | 14~60 | 600~1100 | 73 | 4~10 | 5 |
RU | RU | 540~1188 | 10~42 | 500~900 | 79 | 5~9 | |||
