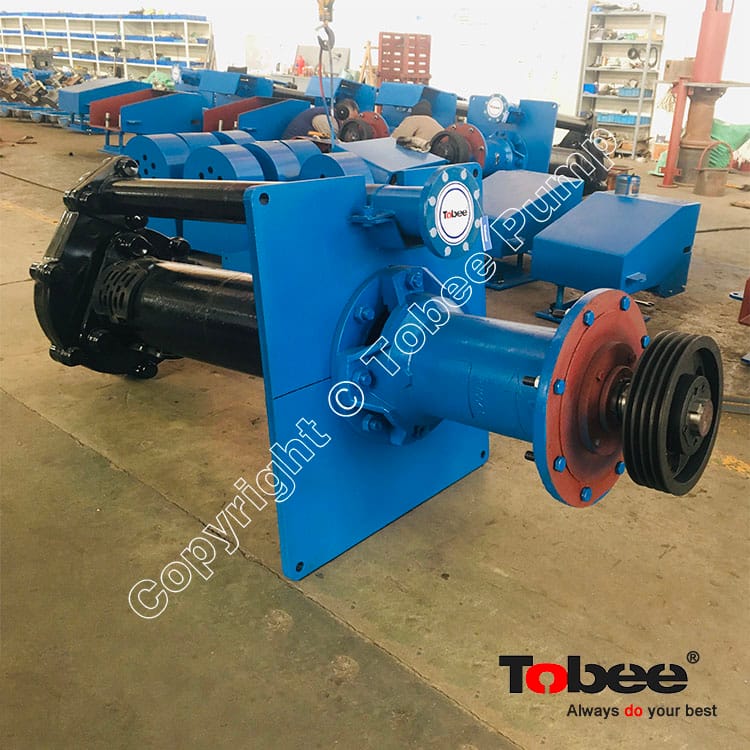

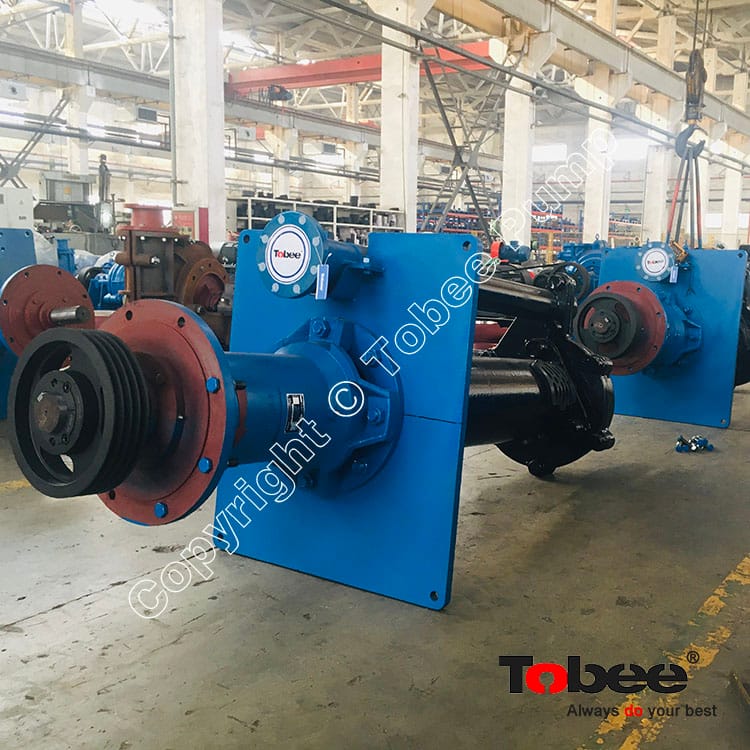

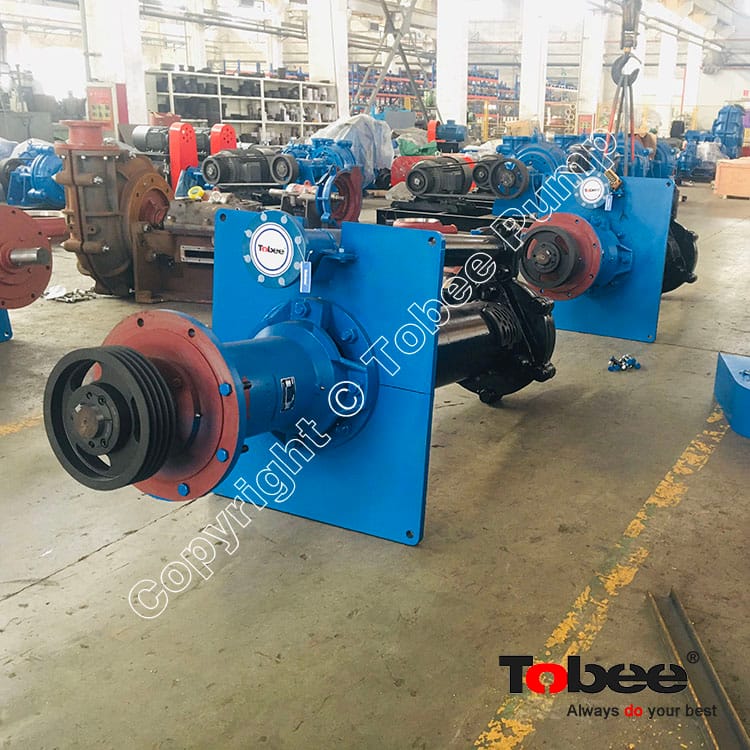

100RV SPR Vertical Sump Pumps Chemical Melting Hot Salt Pump

Product Brands: Tobee

Tobee® SPR Rubber Lined Vertical Slurry Pumps are available in various standard lengths to suit common sump depths, for very deep sumps or where high shaft speeds limit the length of the pump, a suction extension pipe can be fitted to the bottom inlet to extend the depth of the pump by up to 2 meters.

price:

$8,000.00 $8,900.00

Pump Model:

100RV-SPR 100RV-SP

Pump Type:

Vertical Pump Vertical Sump Pump vertical centrifugal pump

HS Code:

8413709990

Quantity:

- + (100 available)

Add to Favorite Items (0)

Sales: 0+

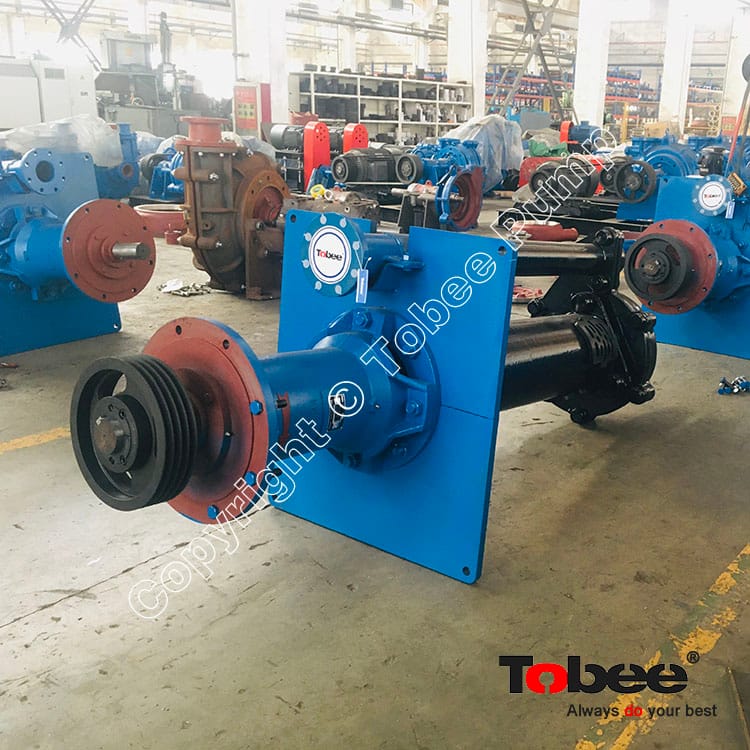

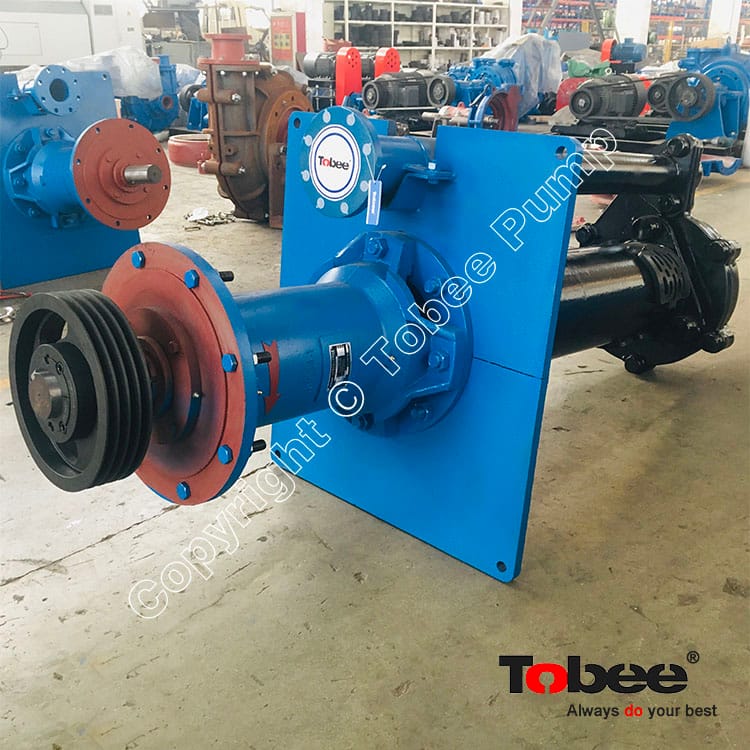

Tobee^® TP(R) Vertical Slurry Pump are centrifugal slurry pumps submerged in sump to work.They are designed for delivering abrasive,large particle and high density slurries.These pumps have no need of any shaft seal and sealing water. They can also be operated normally for insufficient suction duties. Wet parts of type TP pump are made of abrasion-resistant metal. All parts of type TPR pump immersed in liquid are lined with rubber outer liner.They are suited to transport non-edge angle abrasive slurry.

100RV SPR Vertical Sump Pumps Chemical Melting Hot Salt Pump

Tobee^® SPR Rubber Lined Vertical Cantilever Slurry Pump Specification:

Size (discharge): 40mm to 300mm
Capacity: 7.2~ 1492 m3/hr
Head: 5.5m ~ 47 m
Handing solids: 0 ~ 65mm
Concentration: 0%~ 70%
Material:High chrome alloy,Rubber,Polyurethane,Stainless steel etc

Tobee^® 100RV SPR SPR Rubber Lined Vertical Cantilever Slurry Pump Parameters:

Model	Max.Power P (kw)	Clear Water Performance					Impeller dia. (mm)
		Capacity Q		Head H (m)	Speed n (r/min)	Max. Eff. (%)
		m3/h	l/s
100RV-SPR	75	64.8-285	18-79.2	7.5-36	600-1200	62	370

Tobee^® SPR Rubber Lined Vertical Slurry Pumps Applications:

The SPR and SP designs, manufactured in popular metric sizes, provide a simple, yet rugged range of sump pumps specially developed for: Abrasive and/or corrosive slurries, Large particle size, High slurry densities, Continuous or “snore” operations,Heavy duties demanding cantilevered shafts in minerals processing, coal preparation, chemical processing, effluent handling, sand and gravel, and almost every other tank, pit or hole-in-the-ground slurry handling situation.

Label: Iron ore concentrate vertical slurry pump Vertical centrifugal slurry pump vertical slurry sewage pump Rubber lined vertical slurry pump Rubber Vertical Slurry Pump vertical slag slurry pump Vertical Ash Slurry Pump Metal Lined Metallurgy Sump Pump Vertical high temperature molten salt pump vertical sump mining slurry pump
