Sandman Mission Magnum XP Frac Blender Pump Suitable for fracturing Truck Large-scale Work.
Mission Magnum 8x6x18, 12x10x23 and 14x12x22 Blender Pumps are ideally suited for pumping high volumes of heavy slurries that are abrasive, corrosive. An excellent choice for high volume mobile and stationary applications where a small footprint is critical. The low stuffing box pressure can increase seal life approximately 50%. The extra-heavy shaft is designed for minimum deflection. The heavy duty bearings are permanently lubricated to minimize maintenance.
Bare Shaft Mission XP Blender Pump Information:
• BT-650120009/ 14 x 12 x 22 Hard Iron Centrifugal Pumps, Mechanical Seal
• BT-650120010/ 14 x 12 x 22 High Chrome Centrifugal Pumps, Mechanical Seal
• BT-666001001/ 12 x 10 x 23 Hard Iron Centrifugal Pumps, Mechanical Seal
• BT-666001007/ 12 x 10 x 23 High Chrome Centrifugal Pumps, Mechanical Seal
• BT-666001005/ 8 x 6 x 18 Hard Iron Centrifugal Pumps, Mechanical Seal
• BT-666001006/ 8 x 6 x 18 High Chrome Centrifugal Pumps, Mechanical Seal
Design Features:
• Full-open wide impeller.
• Long life no adjustment mechanical seal available for near zero leakage.
• Thick, concentric casing with replaceable casing wear pad.
• Hard iron and high chrome alloy material optional.
• Large power to ensure large flow rates and head pressure up to 500ft.
• Small footprint design is versatile for mobile and stationary application.
• Working for fracking industrial standard and blending application.
• Each casing is approved pressure test prior to delivery.
• Heat treatment was done to improve the hardness and wear-resistance to ensure a longer working life.
• Shaft sleeves are made by 416SS and ceramic coating to protect shaft from abrasive fluids for extra life.
• Mechanical seals can be Tungsten-Tungsten, Tungsten-Silicone, or Silicone-Carbide, all with highly polish sealing face and piton bellow and stainless steel springs.
•100% compatible with NOV™ Mission™ Magnum™ XP, MCM™ XL series and current market offerings.
•The pumps can be unitized with Ex-proof electric motors, diesel engines in-line or over-belt driven configuration.

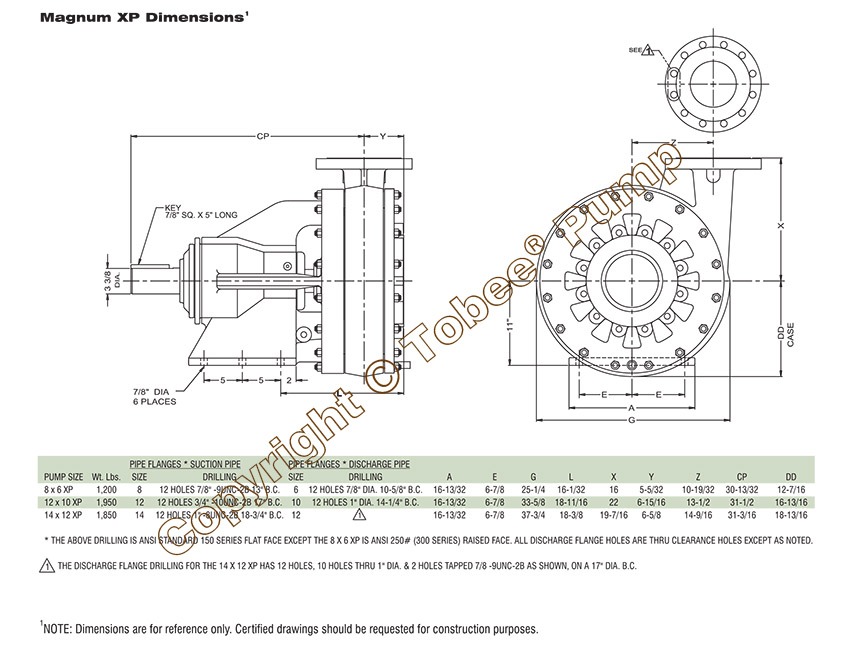

Sandman™ Magnum 14x12x22 XP Pump Drawing:
