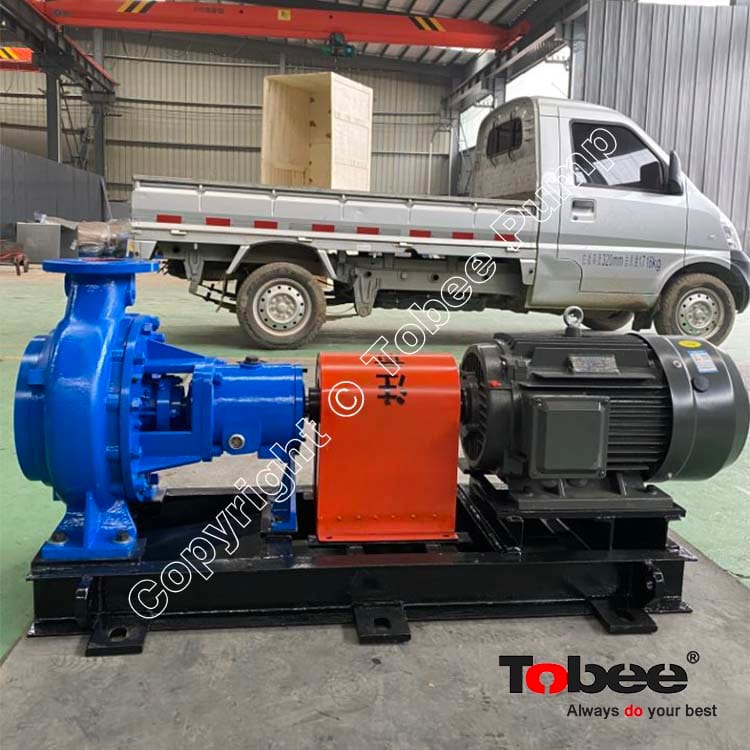

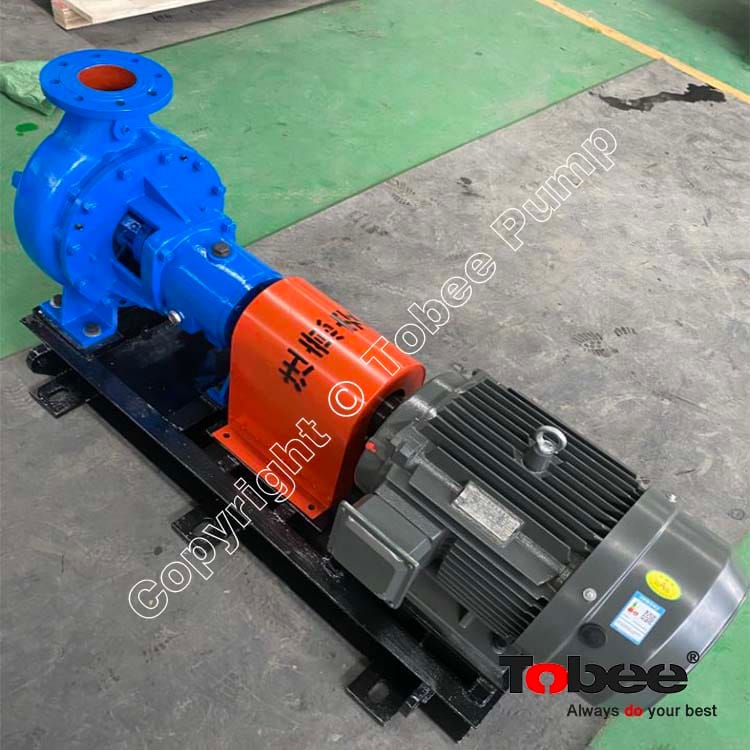

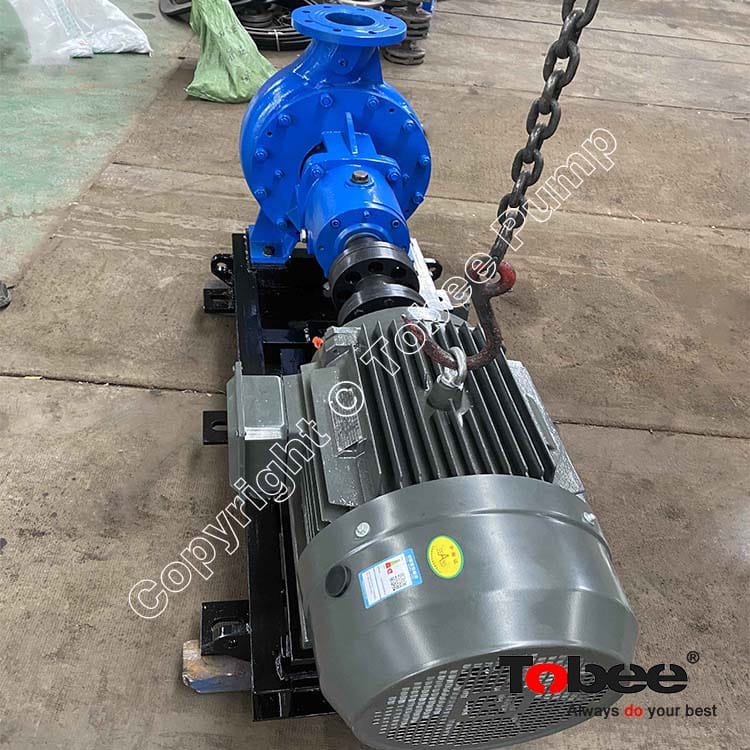

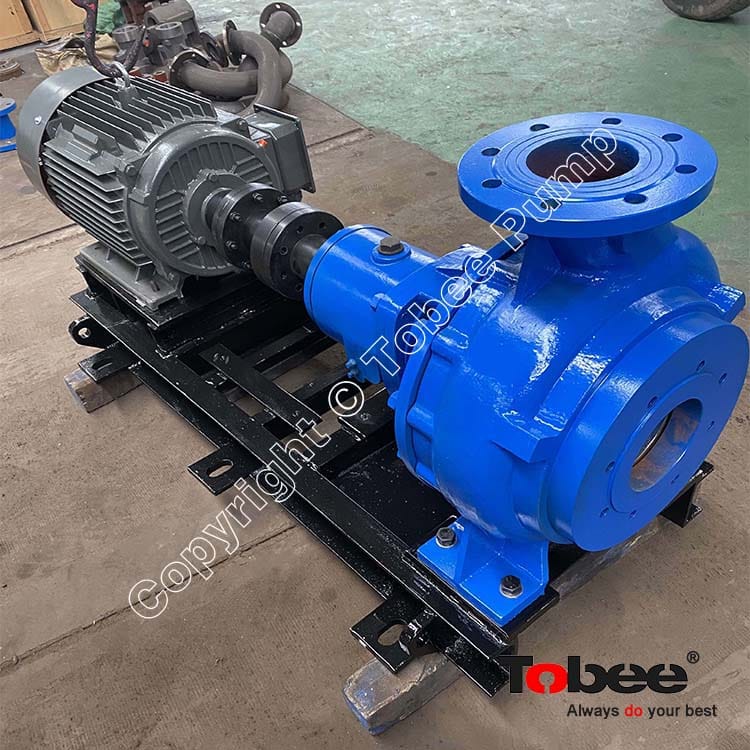

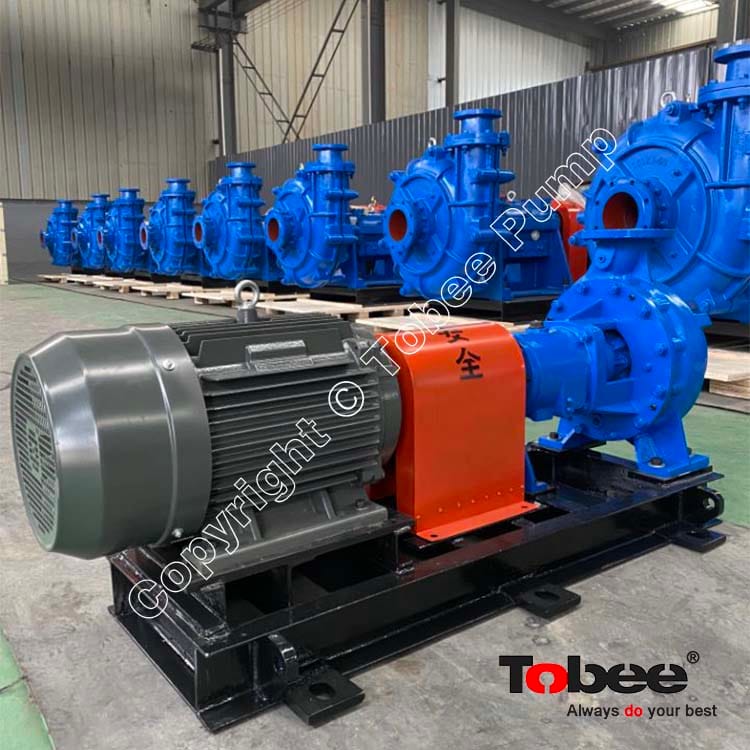

KWPK 100-315 Horizontal Volute Casing Pump for FGD System

Product Brands: Tobee

Tobee® KWPK 100-315 Horizontal radially split volute casing pump in back pull-out design, single-stage, single-entry, available with various impeller types: closed multi-channel impeller, open multi-vane impeller and free-flow impeller.

price:

$5,999.00 $8,600.00

Pump model:

KWPK 100-315

Materials:

High Chrome 2Cr13 SS304 2205 2507 ZG230-450 CD4MCu HT250 QT500-7

HS Code:

8413709990

Quantity:

- + (15 available)

Add to Favorite Items (0)

Sales: 0+

Tobee^® KWPK 100-315 Horizontal radially split volute casing pump in back pull-out design, single-stage, single-entry, available with various impeller types: closed multi-channel impeller, open multi-vane impeller and free-flow impeller.

Tobee^® KWP Non-clogging Centrifugal Pump is introduction of German KSB technology, KWP centrifugal sewage pump is Horizontal, single-stage, radially split volute casing types with heavy-duty back pull-out, non clogging impeller design for industrial applications, they have either multi-vane impeller (K), free-flow impeller (F) or open multi-vane impeller (O), the pumps are not self-priming.

KWP Non-cloggging Centrifugal Pump Impeller Type:

K type impeller - Closed non-blocking impeller. It is suitable for transporting clean water, sewage, and solids-containing media. The medium should not contain solids that are particularly easy to adhere and easy to entangle (such as extra long fibers or coarse rubber particles).
N type impeller - Closed multi-blade impeller. It is suitable for conveying medium containing light solid suspended matter, such as clean water, mechanically treated sewage, sorting water, pulp, sugar juice, etc., which is the preferred structure of the pulp pump.
O type impeller - Open impeller. The scope of application is basically the same as that of the N-type impeller, but the medium in the medium may contain gas.
F type impeller - Free-flow impeller. It is suitable for conveying media containing gas or coarse materials. It is also suitable for conveying solid media which is easy to adhere and easy to wrap, such as extra long fiber, kitchen waste, weed, heavy fertilizer, plastic paper, rubber, rubber and so on.

Tobee^® KWP Non-clogging Centrifugal Pump Applications:

KWP Non-clogging Centrifugal pumps can transport sewage, seawater, brine, sludge and other media containing long fibers, straw, oily, viscous liquid and coarse materials in liquids. It is widely used in sewage treatment, paper mills, breweries, food processing, biogas projects. , kitchen processing, fish industry, aquaculture and other industries.

KWP Non-cloggging Centrifugal Pump Performance Parameters:

Model	Capacity Q (m3/h)	Head H (m)	Speedd n (r/min)	Eff.η (%)	NPSHr (m)	Suction dia. （mm）	Discharge dia. （mm）
KWPk 100-315	52-150	16-38	1450	53-74	2.0-3.5	100	125
