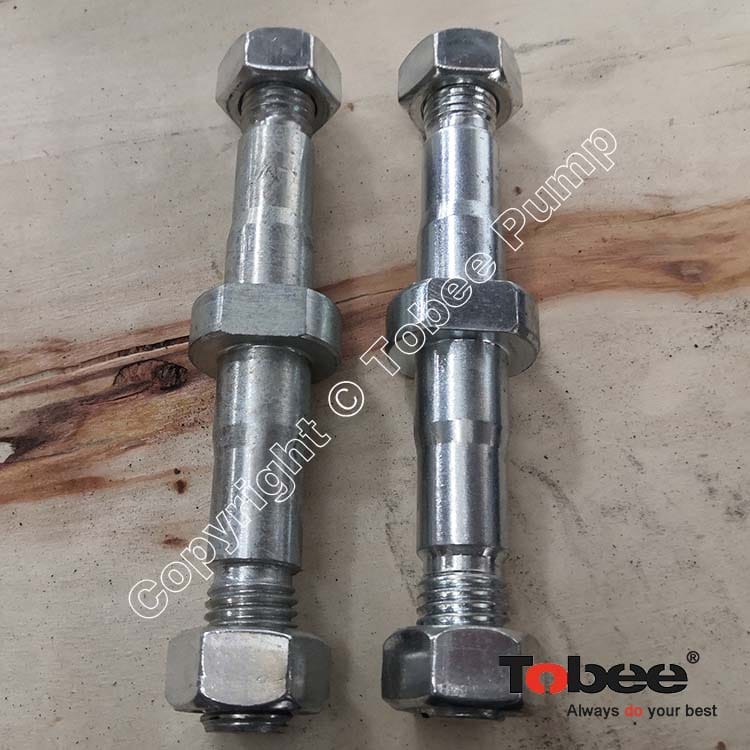

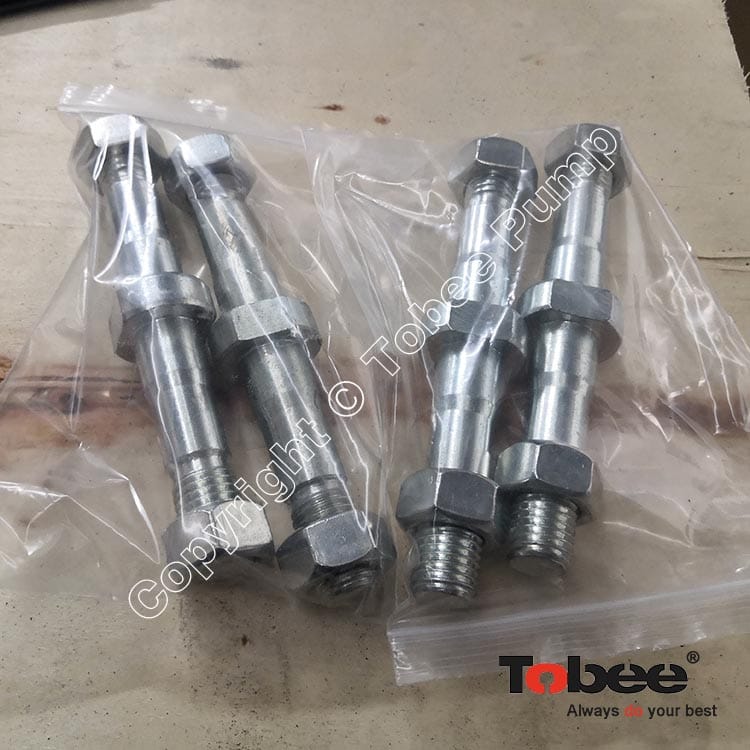

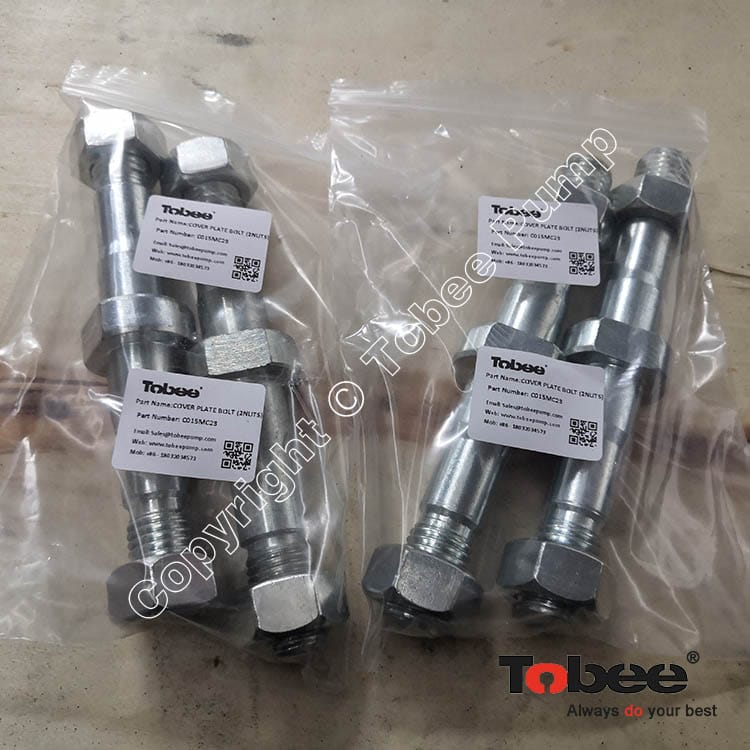

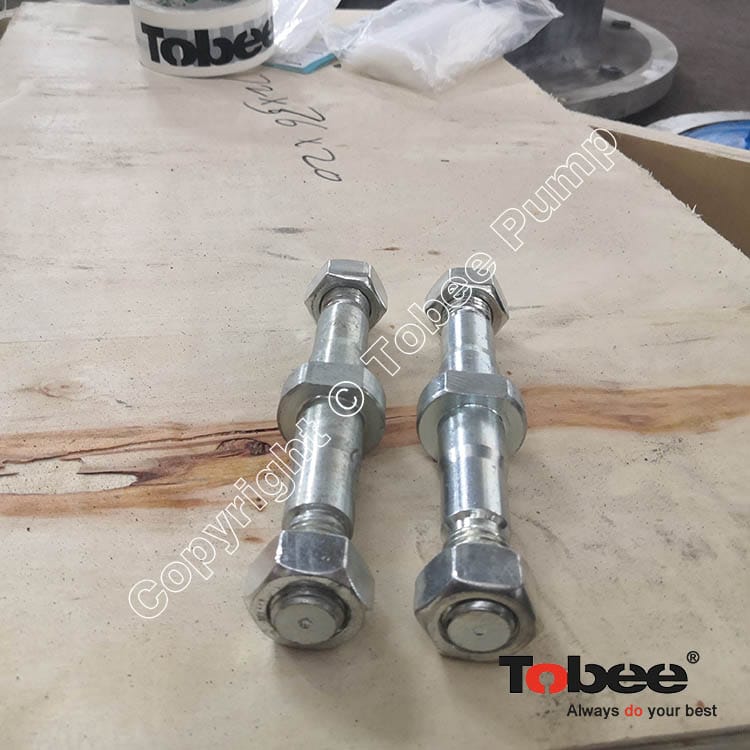

C015C23 Cover Plate Bolt is applied to 3x2 C-AH and 4x3 C-AH Slurry Pumps, and slurry pump cover bolt is an important fastening parts of centrifugal slurry pumps. The connection between slurry pump cover plate and slurry pump frame plate is realized through slurry pump cover bolt. Slurry pump cover plate is suction side casing in lined slurry pumps which pull together with frame plate around the liners via cover plate bolts.
Tobee® 3x2 CAH Slurry Pump is 100% replacement Warman 3/2C-AH Slurry Pump, offers users a wide range of seal and liner configurations, allowing the pump to be fully customized to meet any specific application requirements. 3/2C-AH slurry pumps offer unmatched power consumption, long component life, and unmatched reliability.
3x2 C-AH Slurry Pump Spares List:
|
No. |
Pump Parts Name |
Pump Model |
Pump Part Code |
Matl. Code |
Unit Weight |
|
1 |
Adjust Screw |
3/2 C-AH |
C001 |
E62 |
|
|
2 |
Base |
3/2C-AH |
C003M |
G01 |
44.0 |
|
3 |
Bearing Assembly |
3/2C-AH |
C005M |
ZWZ Bearing |
33.0 |
|
4 |
Bearing Housing |
3/2C-AH |
C004M |
G01 |
15.0 |
|
5 |
Cover Plate |
3/2C-AH |
C2013 |
D21 |
24.0 |
|
6 |
Cover Plate Bolt |
3/2C-AH |
C015 |
E65 |
|
|
7 |
Cover Plate Liner |
3/2C-AH |
C2017 |
R55 |
4.0 |
|
8 |
Discharge Joint |
3/2C-AH |
C2132L |
S01 |
0.2 |
|
9 |
End Cover |
3/2C-AH |
C024 |
G01 |
1.4 |
|
10 |
Expeller |
3/2C-AH |
C028 |
A05 |
2.0 |
|
11 |

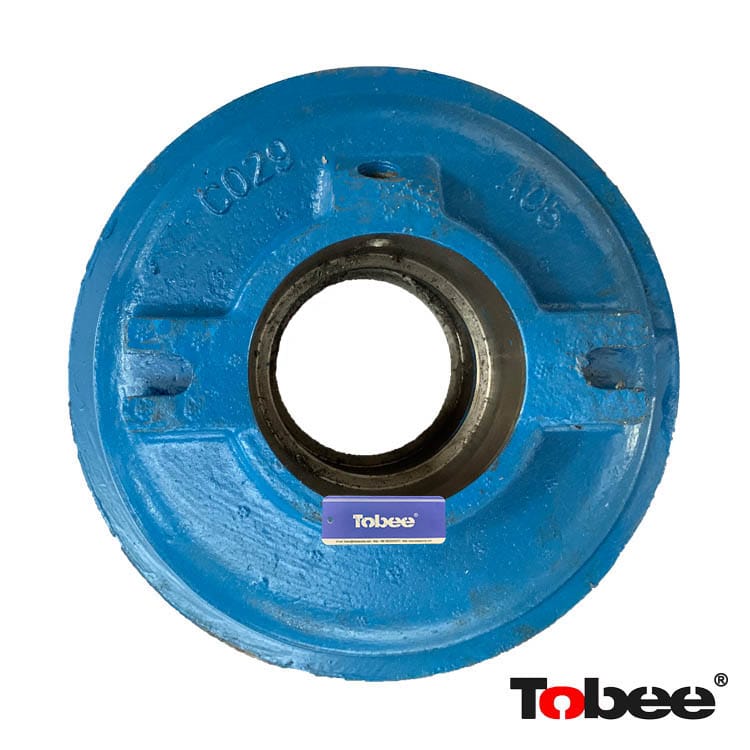

Expeller Ring |
3/2C-AH |
C029 |
A05 |
5.0 |
|
12 |
Expeller Ring |
3/2C-AH |
C029R |
R55 |
1.3 |
|
13 |
Frame Plate |
3/2C-AH |
C2032 |
D21 |
23.0 |
|
14 |
Frame Plate Bolt |
3/2C-AH |
D026 |
E62 |
|
|
15 |
Frame Plate Liner |
3/2C-AH |
C2036 |
R55 |
3.5 |
|
16 |
Frame Plate Liner Insert |
3/2C-AH |
C2041 |
A05 |
7.0 |
|
17 |
Frame Plate Stud |
3/2C-AH |
C039 |
E62 |
|
|
18 |
Gland |
3/2C-AH |
C044 |
G01 |
0.8 |
|
19 |
Gland |
3/2C-AH |
C044 |
C23 |
0.8 |
|
20 |
Gland Bolt |
3/2C-AH |
C045 |
C23 |
|
|
21 |
Grease Retainer |
3/2C-AH |
C046 |
G01 |
0.4 |
|
22 |
3/2C-AH |
C2147 |
A05 |
13.0 |
|
|
23 |

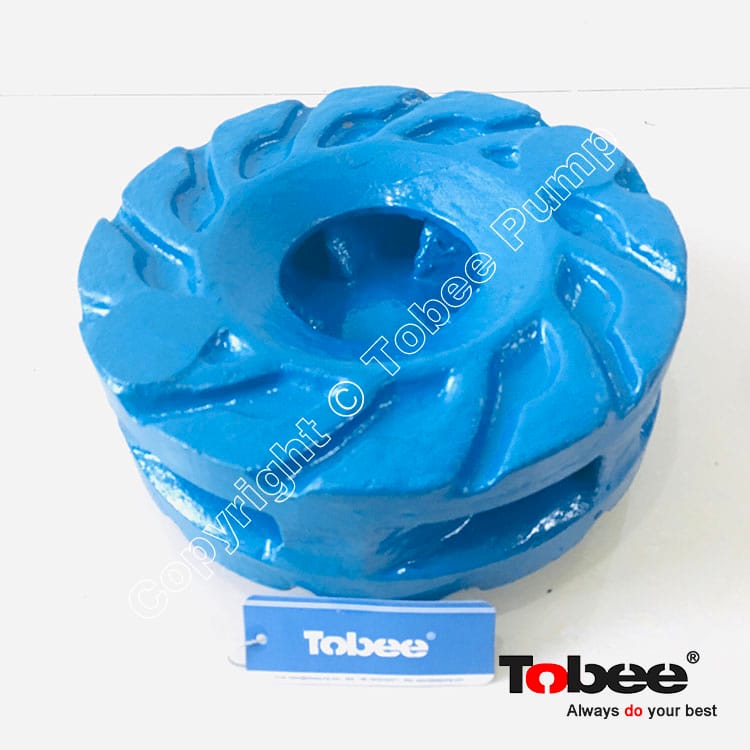

Impeller |
3/2C-AH |
C2127 |
R55 |
5.0 |
|
24 |
Intake Joint |
3/2C-AH |
C2060 |
S01 |
0.2 |
|
25 |
Labyrinth |
3/2C-AH |
G01 |
0.6 |
|
|
26 |
Labyrinth Locknut |
3/2C-AH |
C061 |
E62 |
0.2 |
|
27 |
Lantern Restrictor |
3/2C-AH |
C118 |
C23 |
0.3 |
|
28 |
Lantern Ring |
3/2C-AH |
C063 |
C23 |
0.2 |
|
29 |
Lip Seal |
3/2C-AH |
C090 |
S01 |
|
|
30 |
Neck Ring |
3/2C-AH |
C067 |
C23 |
0.044 |
|
31 |
O ring |
3/2C-AH |
B109 |
S10 |
|
|
32 |

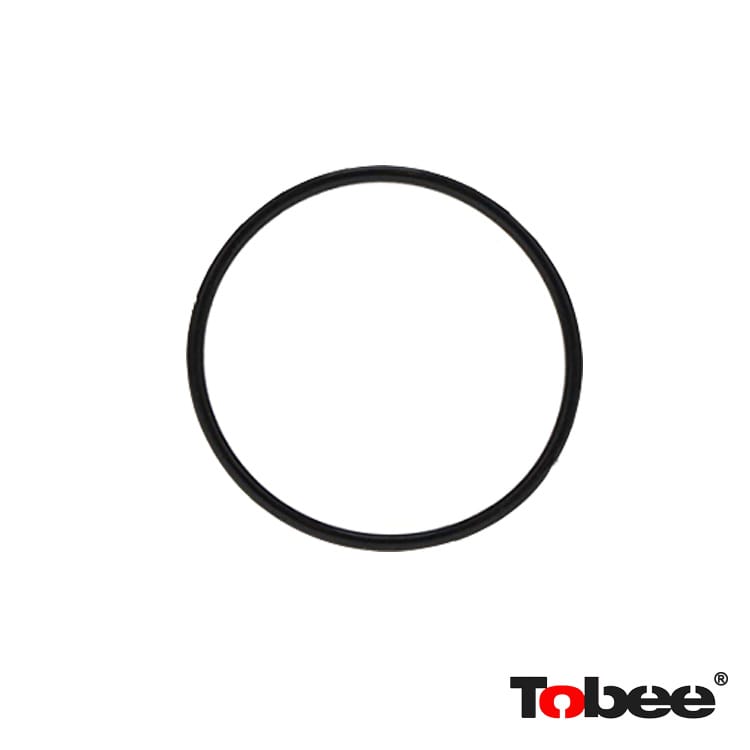

O ring |
3/2C-AH |
C217 |
S10 |
|
|
33 |
O ring |
3/2C-AH |
C109 |
S10 |
|
|
34 |
Packing |
3/2C-AH |
C111 |
Q05 |
|
|
35 |
Packing |
3/2C-AH |
C111 |
Q21 |
|
|
36 |
Packing |
3/2C-AH |
C111 |
Q05A |
|
|
37 |
Packing |
3/2C-AH |
C111 |
X06 |
|
|
38 |
Piston Ring |
3/2C-AH |
C108 |
G01 |
|
|
39 |
Seal |
3/2C-AH |
C122 |
S01 |
0.1 |
|
40 |
Shaft |
3/2C-AH |
C073M |
E05 |
9.1 |
|
41 |

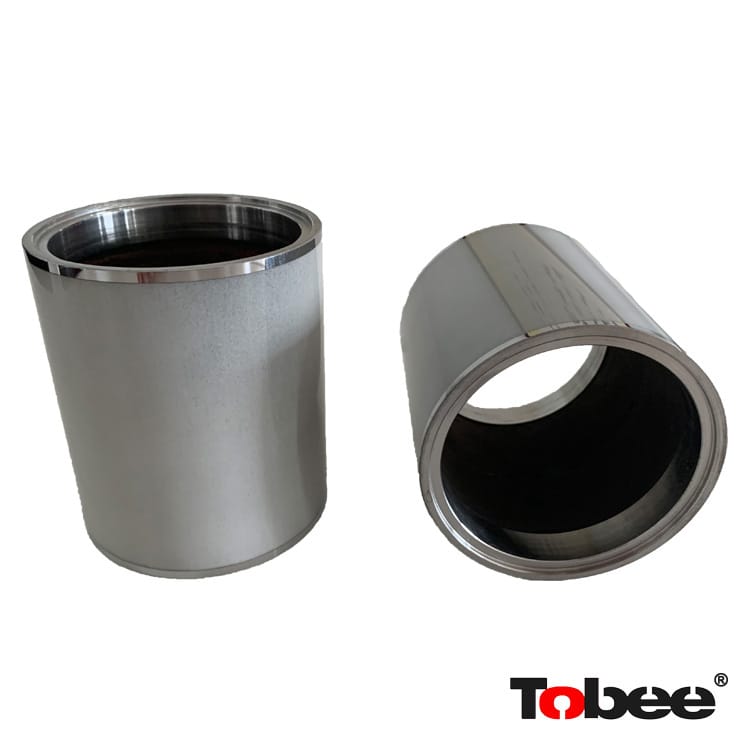

Shaft Sleeve |
3/2C-AH |
C075 |
C21 |
0.5 |
|
42 |
Shaft Sleeve |
3/2C-AH |
C075 |
C23 |
0.5 |
|
43 |
Shaft Sleeve |
3/2C-AH |
C075 |
J05 |
|
|
44 |
Shaft Sleeve |
3/2C-AH |
C076 |
C21 |
0.5 |
|
45 |
Shaft Sleeve |
3/2C-AH |
C076 |
C23 |
0.5 |
|
46 |
Shaft Sleeve |
3/2C-AH |
C076 |
J05 |
|
|
47 |
Shaft Spacer |
3/2C-AH |
C117 |
C21 |
0.3 |
|
48 |
Shaft Spacer |
3/2C-AH |
C117 |
C23 |
0.3 |
|
49 |
Shaft Spacer |
3/2C-AH |
C117 |
J05 |
|
|
50 |
Shaft Spacer |
3/2C-AH |
CAM117 |
C21 |
|
|
51 |
Shaft Spacer |
3/2C-AH |
CAM117 |
C23 |
|
|
52 |
Shaft Spacer |
3/2C-AH |
CAM117 |
J05 |
|
|
53 |
Shim Set |
3/2C-AH |
C025 |
P10 |
|
|
54 |
Stuffing Box |
3/2C-AH |
C078 |
A05 |
5.4 |
|
55 |
Volute Frame Seal |
3/2C-AH |
C2125 |
S01 |
0.03 |
|
56 |
Volute Liner |
3/2C-AH |
C2110 |
A05 |
29.0 |
